BW-5080 Automatic Side-Lifting LED Tubes Flexo Plate Exposure Machine
BW-5080 Automatic Side-Lifting LED Tubes Flexo Plate Exposure Machine with 52 LED tubes & 2030×1270mm exposure size.
Water-cooled platform, 60-day lead time.
Item No :
BW-5080Order(MOQ) :
1 SetPayment :
40% T/T Deposit,60% T/T Before ShippingProduct Origin :
ChinaShipping Port :
Shanghai,NingboLead Time :
60 days| Model | Exposure Size (MM) | Machine Size (MM) | Voltage | Power | Lamps |
|---|---|---|---|---|---|
| BW-5080 | 2030 × 1270 | 3200 × 1800 × 1200 | 380V | 8kW | 52pcs 100W LED |

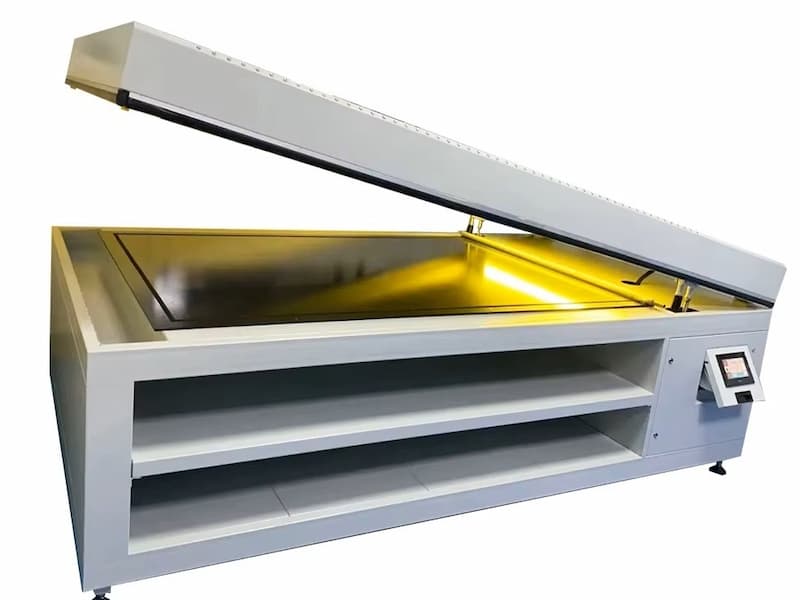

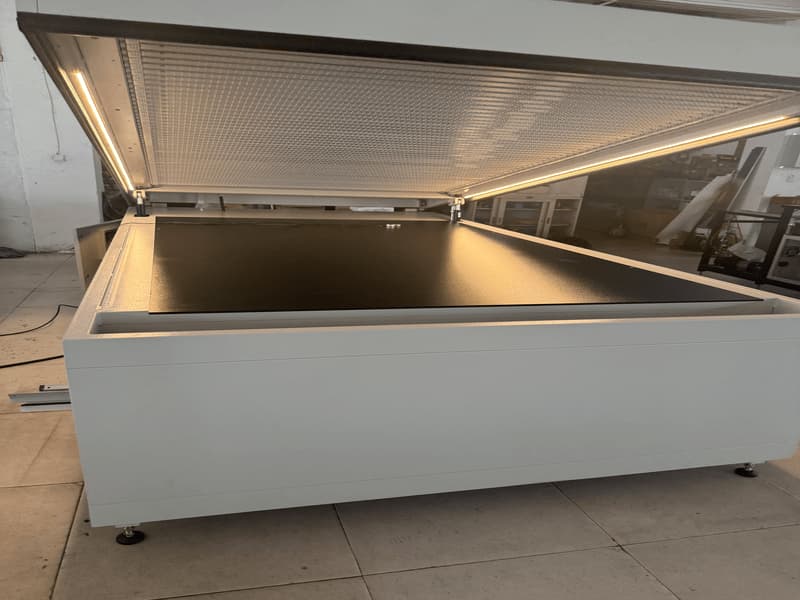

The Automatic Side-Lifting LED Tubes Flexo Plate Exposure Machine features an aluminum exposure platform equipped with an automatic water-cooling system and wind cooling with a side-lifting structure. Designed for large-format flexographic plate processing, the BW-5080 handles plates up to 2030 × 1270mm (80" × 50"), making it ideal for corrugated carton, flexible packaging, and pre-print applications.
The machine is equipped with 52 pieces of LED tubes, each containing 288 LED beads (100W output, UVA 365nm wavelength, 1515mm length), delivering 20 J/cm² or 40 J/cm² UVA energy with dual energy output for optimal front and back exposure. A two-level energy compensation system ensures stable and uniform output energy over extended periods of operation.
Compared to conventional lamp-type exposure machines, the BW-5080 eliminates lamp replacement costs with over 20,000-hour LED lifespan, reduces energy consumption by up to 70%, and produces no ozone emissions — making it a safer, more cost-effective choice for high-volume flexo plate production.
The BW-5080 stands out with its side-lifting structure and water-cooled aluminum platform, specifically engineered for large-format plates up to 80" × 50". With 52 high-power LED tubes (288 beads each), the machine delivers dual energy output for precise front and back exposure, while the two-level energy compensation system maintains uniform output over time. The unique convex lens and energy control system prevents coating issues caused by high LED energy, and the combined direct and cross-flow cooling design ensures consistent energy distribution across the entire plate surface — regardless of seasonal temperature changes.
