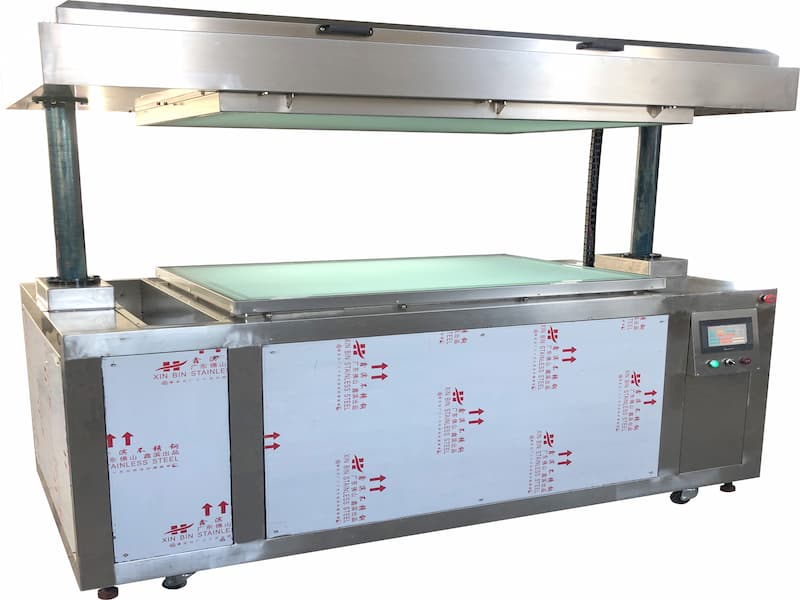

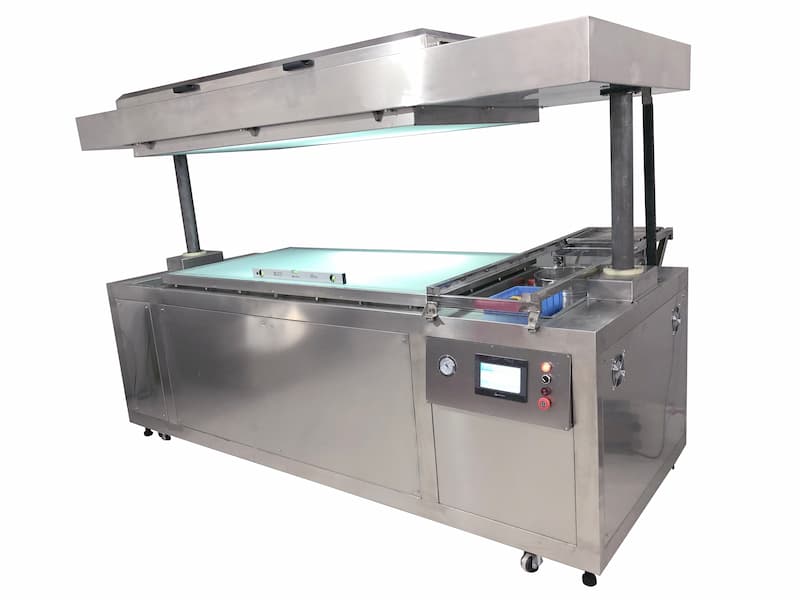

Liquid Resin Flexographic Printing Plate Lifting Exposure Machine
The Bowin Liquid Resin Flexographic Printing Plate Lifting Exposure Machine is designed for processing liquid resin flexographic printing plates.
Processed plates are mainly used for corrugated carton and woven bag printing applications.
Item No :
BW800-BW2010Order(MOQ) :
1 SetPayment :
40% T/T Deposit,60% T/T Before ShippingProduct Origin :
ChinaColor :
Stainless SteelShipping Port :
Shanghai,NingboLead Time :

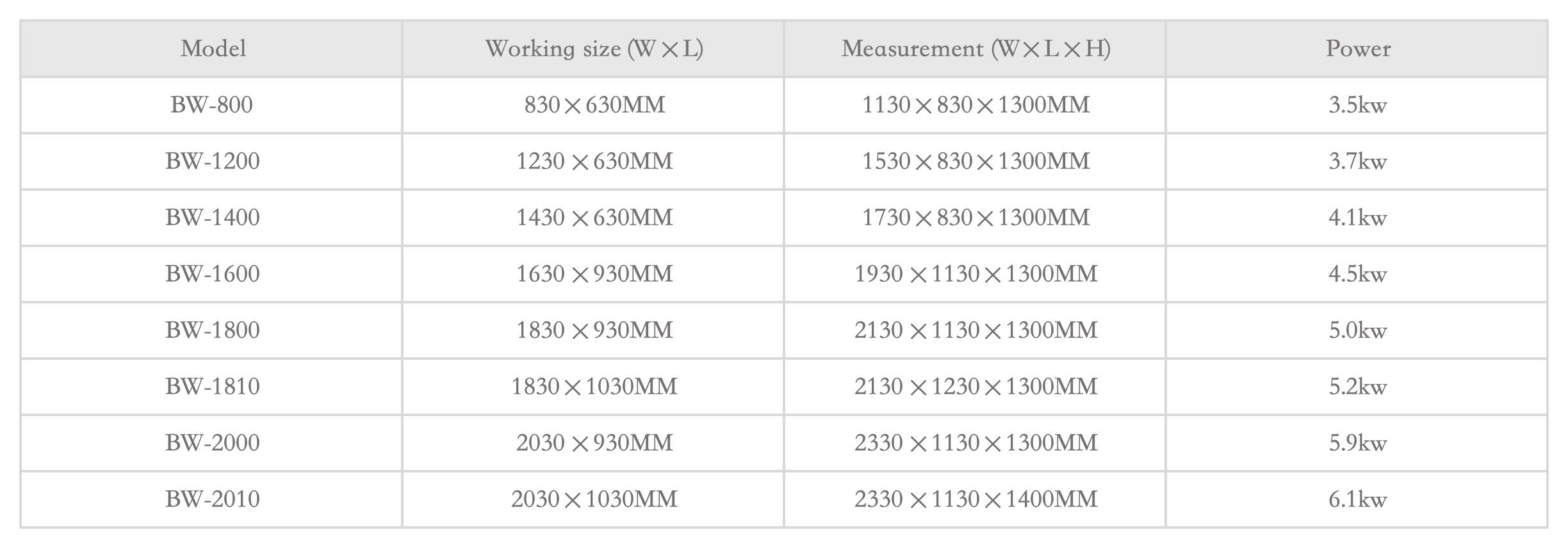

40 days| Model | Working Size (W×L) | Measurement (W×L×H) | Power |
|---|---|---|---|
| BW-800 | 830 × 630 mm | 1130 × 830 × 1300 mm | 3.5kW |
| BW-1200 | 1230 × 630 mm | 1530 × 830 × 1300 mm | 3.7kW |
| BW-1400 | 1430 × 630 mm | 1730 × 830 × 1300 mm | 4.1kW |
| BW-1600 | 1630 × 930 mm | 1930 × 1130 × 1300 mm | 4.5kW |
| BW-1800 | 1830 × 930 mm | 2130 × 1130 × 1300 mm | 5.0kW |
| BW-1810 | 1830 × 1030 mm | 2130 × 1230 × 1300 mm | 5.2kW |
| BW-2000 | 2030 × 930 mm | 2330 × 1130 × 1300 mm | 5.9kW |
| BW-2010 | 2030 × 1030 mm | 2330 × 1130 × 1400 mm | 6.1kW |
Special orders with special sizes accepted!
The Liquid Resin Flexographic Printing Plate Lifting Exposure Machine is designed for processing liquid resin flexographic printing plates. The processed flexographic printing plate is mainly used for printing corrugated carton and woven bag applications.
The exposure machine uses a PLC touchscreen control, with LED exposure lamps for both lower and upper exposures. Both upper and lower glass panels are equipped with "AGC" 25mm glass imported from Japan, ensuring precise and uniform light transmission for high-quality plate processing.
Why Liquid Resin Over Solid Resin Plates? Compared to solid resin flexographic plates, liquid resin plates offer lower material costs, faster plate-making speed, and easier handling — making them the preferred choice for high-volume corrugated carton and woven bag printing. Unlike solvent-based plate processing that requires washing and drying stages, the Bowin liquid resin exposure machine delivers a simpler workflow with fewer processing steps, reducing both labor and equipment investment for flexo printers.
The Bowin Liquid Resin Plate Exposure Machine is specifically engineered for liquid resin flexographic plate processing, widely used in corrugated carton and woven bag printing industries. With PLC touchscreen control, dual LED upper and lower exposure, and premium AGC Japanese glass panels, it delivers consistent, high-quality plate-making results. Available in 8 model sizes from BW-800 to BW-2010, with custom sizes also accepted — making it the ideal choice for flexo printers of all production scales.
Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690
From our 30,000m² production base to your factory — every machine is carefully assembled, tested and packed before shipment.
