China Digital Plate Maker Manufacturer

Product Details

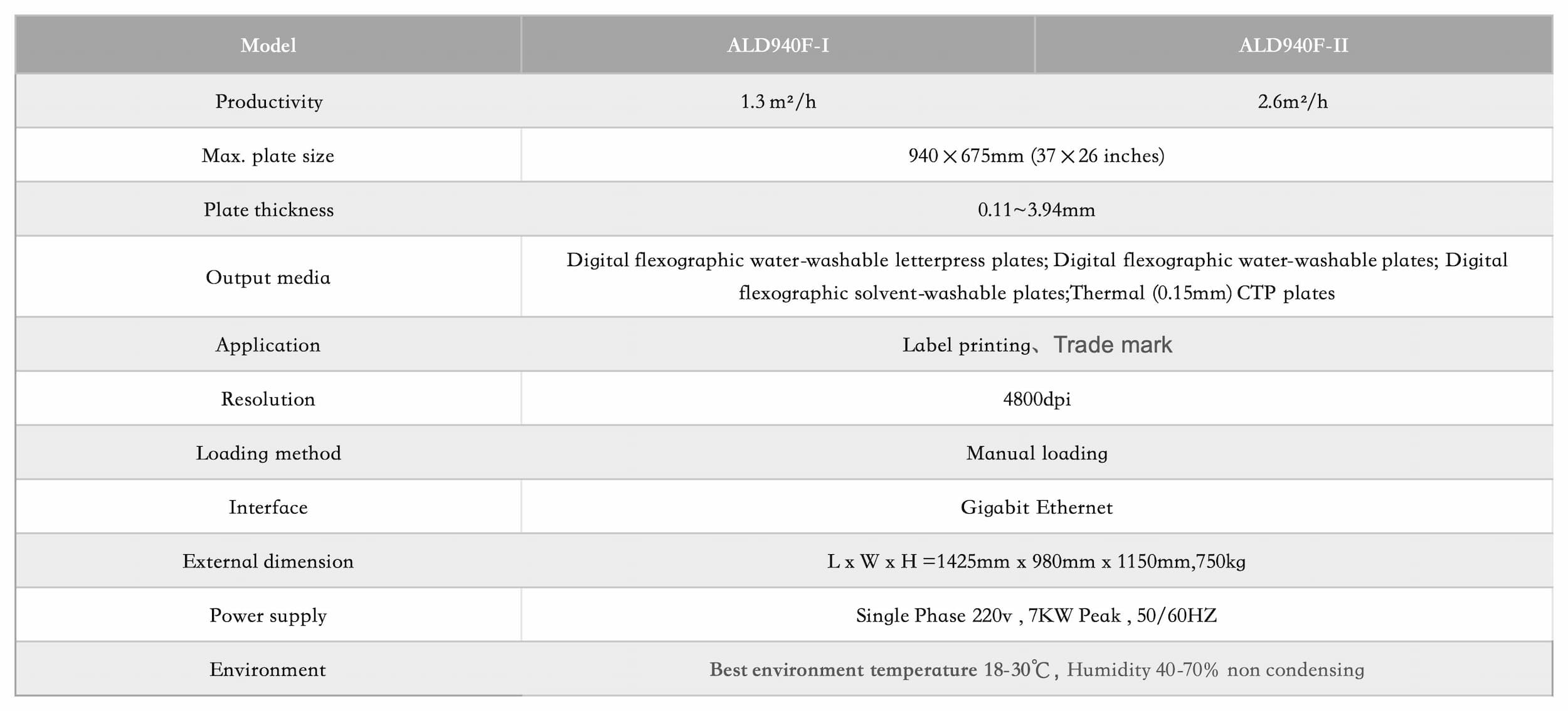

Specification	BW940F-I	BW940F-II
Productivity	1.3 m²/h	2.6 m²/h
Max. Plate Size	940 × 675 mm (37 × 26 inches)
Plate Thickness	0.11 – 3.94 mm
Output Media	Digital flexographic water-washable letterpress plates Digital flexographic Water-washable plates Digital flexographic Solvent-washable plates Thermal (0.15mm) CTP plates
Application	Label printing, Trade mark
Resolution	2400dpi/4800dpi
Loading Method	Manual loading
Interface	Gigabit Ethernet
Dimension (L×W×H)	1425 × 980 × 1150 mm
Weight	750 Kg
Power Supply	Single Phase 220V, 7kW Peak, 50/60Hz
Environment	18–30℃, 40–70% RH (non-condensing)

Ideal For

Label Printing Trade Mark Printing

Why Bowin Global

60+

Countries Served

30,000m²

Production Base

25 Days

Standard Lead Time

OEM/ODM

Custom Solutions

Product Description

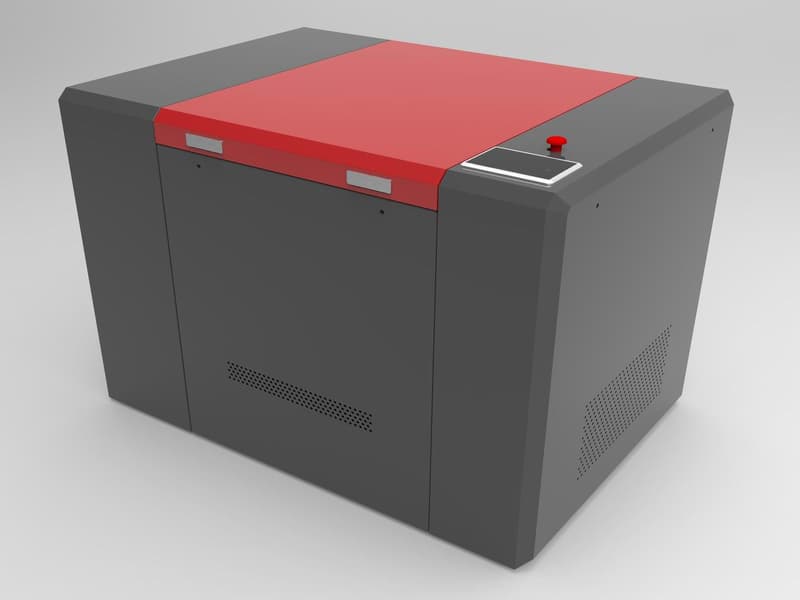

The Bowin Flexo CTP Machine (CDI) is a digital plate-making solution for the flexographic printing industry. It uses precision thermal laser technology to engrave digital flexographic plates and dry laser films, eliminating traditional film-based workflows. Featuring automatic focusing, constant-pressure vacuum suction, flatness scanning, and online plate scaling (97%–100%), it delivers consistent, high-quality results for label and packaging applications. Supporting plate thicknesses from 0.11mm to 3.94mm with a user-friendly 7-inch touch screen, it is the ideal choice for trade shops and converters worldwide.

Technical Superiority

Automatic Constant Pressure Adsorption System
For the plates of different sizes, ensure the absorbent pressure and adsorption effect are almost the same, thus the plate can be adsorbed perfectly.

Online Minification Adjustment
Reduce the workload of Designer, put all the minification for different printing machines into the Flexo CTP, and realize the function of minification on Flexo CTP. The minification can be adjustable for 97%–100%.

Automatic Focusing Technology
For the plates of different thickness 0.11-3.94mm, after the plate is loaded onto the drum, the focus can be adjusted automatically by click "Automatic Focusing" whatever the plate thickness is, which can ensure the plate will be exposed at proper focus to guarantee the expose quality. The temperature of the workshop for Flexo CTP is more flexible and the machine can work well when the temperature is 18℃–30℃.

Flatness Scanning
Plate stick to the drum, flatness laser scanning of the high-precision to verify the plate flatness, to ensure the center focus of the plate in the actual & clear imaging. If uneven adsorption, the error will be immediately reported. It reminds the user to re-load the plate and reduce the unnecessary loss.

Automatic Dedusting
Activated carbon, Filter, Pressure real-time monitoring.

Linear Motor Scanning System

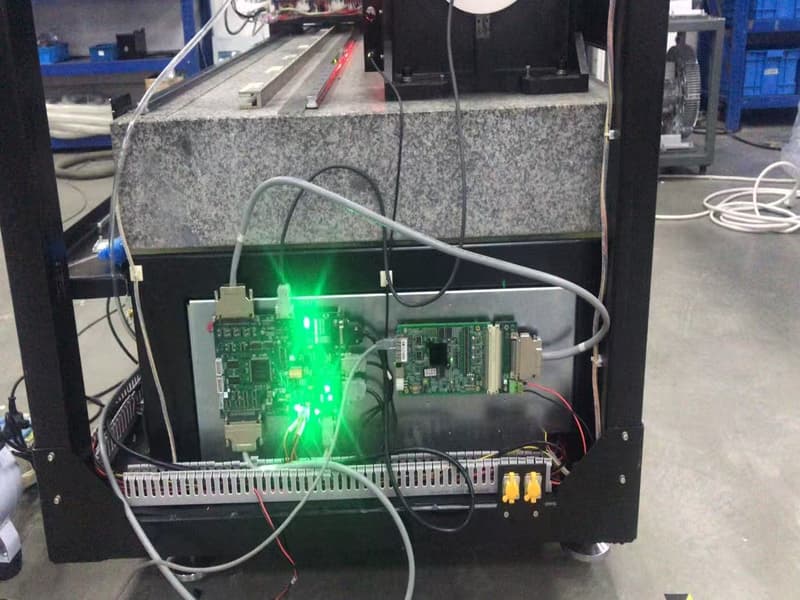

High precision, high speed, and maintenance-free, to ensure the stable working of the laser system. Marble Platform: High precision, low thermal expansion coefficient, extremely precise over long-term lifecycle.

7-Inch Touch-screen Monitor
More simple and practical for operation.

Bidirectional Pedals
Free operator's hands to make the loading and unloading process easier.

Gigabit Ethernet Interface
More stable and reliable of data transmission, and extend the transmission distance. The distance of the equipment and the editing computer can be more than 100 meters away.

Compatible Plate Materials

1. Digital photopolymer flexo plate — water wash

2. Digital photopolymer flexo plate — solvent wash

3. Dry laser film (ablation film)

4. Steel-based digital flexo plate

5. Thermal digital flexo plate

Why Choose Flexo CTP Machine?

The Bowin Flexo CTP Machine (CDI) combines automatic focusing technology with a compact 940×675mm imaging area, making it ideal for label and trade mark printing. The constant-pressure vacuum suction system ensures uniform plate adsorption regardless of size, while flatness laser scanning verifies plate quality before engraving to reduce material waste. With bidirectional pedals for hands-free loading, a 7-inch touch-screen for intuitive operation, and gigabit Ethernet for flexible workshop layout, this machine delivers professional plate-making performance in a space-efficient footprint for trade shops and converters worldwide.

Tell us your plate size and production volume, we'll recommend the best model for you.

✉ Send Inquiry Now ☎ WhatsApp: +86 15051421690

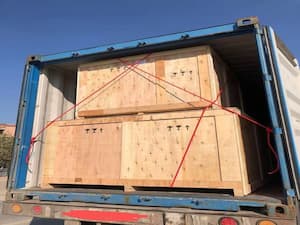

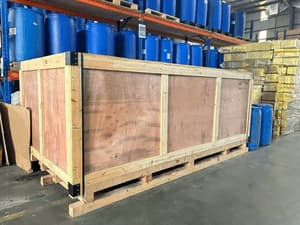

PRODUCTION & DELIVERY

From our 30,000m² production base to your factory — every machine is carefully assembled, tested and packed before shipment.

FAQ

Q1: What types of flexo plates are compatible with this CTP machine?

The machine supports a wide range of digital flexo plate materials, including: digital photopolymer flexo plates (water-wash and solvent-wash), dry laser film (ablation film), steel-based digital flexo plates, and thermal digital flexo plates.

Q2: How does the automatic focusing system work with different plate thicknesses?

The machine supports plates ranging from 0.11mm to 3.94mm in thickness. Once the plate is loaded onto the drum, simply click the "Automatic Focusing" button — the system will automatically adjust the focal distance regardless of plate thickness, ensuring consistent exposure quality every time.

Q3: What are the workshop environmental requirements for this machine?

The Flexo CTP operates reliably at ambient temperatures between 18℃ and 30℃. The built-in automatic focusing technology compensates for temperature fluctuations, making the machine more adaptable to varying workshop conditions compared to conventional CTP systems.

Q4: How far can the editing computer be placed from the machine?

Thanks to the Gigabit Ethernet interface with extended transmission capability, the editing computer can be located more than 100 meters away from the equipment. This gives you flexibility in workshop layout without compromising data stability or speed.
