BW Series Eco All-in-One Water-Based Solid Flexo Plate Making Machine for Corrugated & Label Printing
BW eco water wash flexo plate maker with integrated exposure, washing & detack, fits 0.95-1.7mm water-wash photopolymer plates. Built-in circulating filter cuts 40% floor space, zero solvent VOC & low running cost. OEM available, 12-month warranty, global shipping.
Item No :
BW-400 - BW-1210Order(MOQ) :
1 SetPayment :
40% T/T Deposit;60% T/T Before ShippingProduct Origin :
ChinaColor :
Stainless SteelShipping Port :
Shanghai,NingboLead Time :
40 days
| Model | Plate Size (MM) | Machine Size (W×L×H) (MM) | Power (kW) | Flexo Plate Thickness |
|---|---|---|---|---|
| BW-400 | 430 × 300 | 710 × 610 × 1050 | 2.3 | 0.95 – 1.7 mm |
| BW-600 | 600 × 400 | 860 × 710 × 1050 | 2.6 | 0.95 – 1.7 mm |
| BW-800 | 800 × 600 | 1090 × 910 × 1150 | 3.5 | 0.95 – 1.7 mm |
| BW-900 | 900 × 600 | 1190 × 910 × 1150 | 3.7 | 0.95 – 1.7 mm |
| BW-1000 | 1000 × 600 | 1290 × 910 × 1150 | 3.9 | 0.95 – 1.7 mm |
| BW-1200 | 1200 × 600 | 1490 × 910 × 1190 | 3.9 | 0.95 – 1.7 mm |
| BW-1209 | 1200 × 900 | 1490 × 1210 × 1190 | 4.1 | 0.95 – 1.7 mm |
| BW-1210 | 1200 × 1000 | 1490 × 1310 × 1190 | 4.2 | 0.95 – 1.7 mm |
* Special orders with custom sizes accepted!

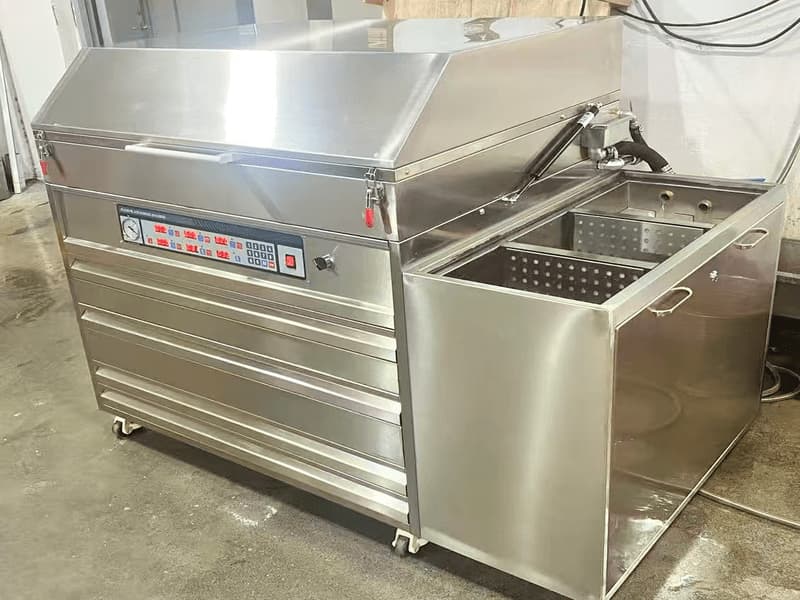

The Bowin BW Water-Based Solid Flexo Plate Making Machine is an all-in-one compact unit combining UV exposure, water washing and UVC detacking for flexographic plates. It accepts 0.95mm–1.7mm water-wash photopolymer plates and is perfectly suited for corrugated packaging, woven bag, and self-adhesive label printing. By adopting water-based washout instead of chemical solvents, the machine generates zero solvent VOC, delivers lower running costs, and creates a safer operating environment. Its integrated one-piece structure unifies exposure, washing and UVC detacking in single station, cutting workshop footprint by up to 40% and simplifying the full plate-making workflow.
Unlike traditional solvent-based systems, water-based washout uses plain water instead of chemicals — safer for operators, better for the environment, and lower in running costs. Combined with the all-in-one design that integrates exposure, washing, and UVC detacking into a single footprint-saving machine, this solution reduces floor space by up to 40% while delivering professional-grade plate quality.
Exposure, water washing & ddetacking integrated in one compact unit
Uses plain water instead of chemical solvents — safer for operators, eco-friendly, lower running cost
Corrosion-resistant construction with long service life
Philips UVA/UVC, Panasonic washer, ORIX oven, Japan TOYO film
Handles water-wash photopolymer plates from 0.95mm to 1.7mm thickness
Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690
From our 30,000m² production base to your factory — every machine and flexographic printing plate are carefully assembled, tested and packed before shipment.
