China 1600×1000mm All-in-one Flexo Plate Making Machine Manufacturer

Product Details

Parameter	Specification
Plate-Making Area	1600 × 1000 mm
Functions	Wash & Dryer Unit; Exposure & Detackify Unit
Automatic Lift	Yes
Electricity	220V/50Hz/60Hz, Single Phase
Output Media	Analog Flexo Plate / Digital Flexo Plate (Except Laser Exposure Step)
Loading Method	Manual Loading
Material	Stainless Steel
Item No	1600x1000

Ideal For

Large Format Flexographic Plate Making Corrugated Carton Printing Woven Bag Printing Flexible Packaging

Why Bowin Global

60+

Countries Served

30,000m²

Production Base

40 Days

Standard Lead Time

OEM/ODM

Custom Solutions

Product Description

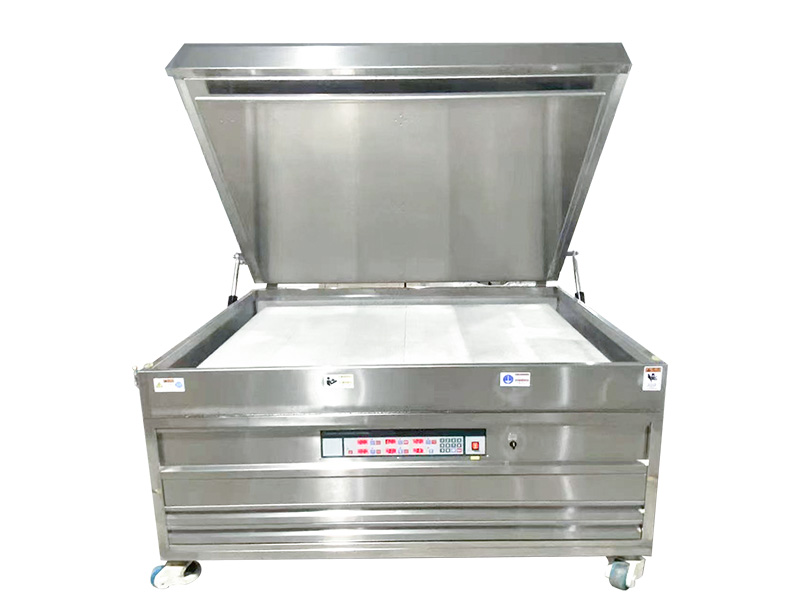

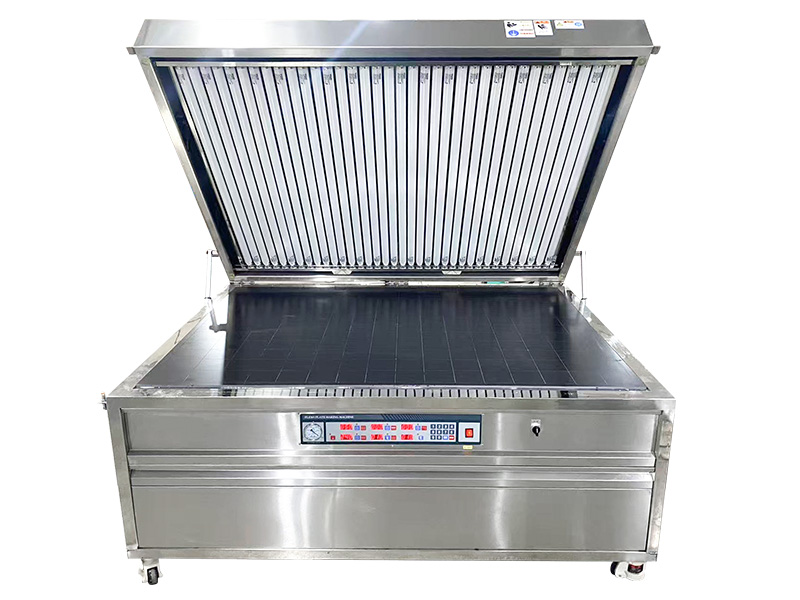

The 1600×1000mm All-in-One Flexo Plate Making Machine is designed for processing large format analog and digital flexographic printing plates. It integrates exposure, washing, drying, and de-tacking functions into a single compact unit, eliminating the need to transfer plates between separate machines. This all-in-one design saves workspace, reduces plate handling damage, and streamlines the entire plate-making workflow.

Built with stainless steel construction for long-lasting durability, the machine features imported Philip UVA and UVC light sources, a Japan Toyo slow reflective violet suction membrane, and a computer controller for easy operation. With a 1600×1000mm plate-making area and automatic lift function, it is the versatile solution for corrugated carton, woven bag, label, and flexible packaging printing industries.

Technical Superiority

Stainless Steel Construction
Full stainless steel body ensures durability and rust resistance, delivering long service life even in high-humidity plate-making environments.

Imported Philip UVA & UVC Light Source
Adopted imported Philip specific UVA lamp with Philip rectifier (frequency transforming type for better registration accuracy). Philips UVC light source for de-tacking removes the sticky layer efficiently.

Japan Toyo Suction Membrane
Imported slow reflective violet suction membrane from Japan Toyo ensures superior vacuum contact and consistent exposure quality across the entire 1600×1000mm area.

Computer Controller
User-friendly computer controller enables intuitive operation, reducing training time and minimizing operator errors.

Precision Temperature Control
American digital integrated thermo sensor ensures accurate temperature monitoring throughout the drying process for consistent plate quality.

Japanese Plate Washer & ORIX Dry Oven
Equipped with Japanese Panasonic or Oriental plate washer and Japanese ORIX constant dry oven, featuring strong wind for fast and even drying results.

All-in-One Integrated Design
Combines exposure, plate washing, drying, and de-tacking in one unit. Eliminates plate transfer between machines, protecting plates from damage and saving floor space.

Automatic Lift Function
Built-in automatic lift system for easy plate loading and unloading, reducing operator effort and improving workflow efficiency.

Why Choose Bowin 1600×1000mm All-in-One Flexo Plate Making Machine?

The Bowin All-in-One Flexo Plate Making Machine integrates exposure, washing, drying, and de-tacking into a single stainless steel unit. With imported Philip UVA/UVC light sources, Japan Toyo suction membrane, and Japanese ORIX dry oven, it delivers professional plate-making quality for large format flexographic plates up to 1600×1000mm. The automatic lift and computer controller make operation effortless, while the all-in-one design saves valuable workshop space for corrugated carton, woven bag, label, and flexible packaging printers.

Get a Free Quote Today

Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690

✉ Send Inquiry 📱 WhatsApp：+86 15051421690

PRODUCTION & DELIVERY

From our 30,000m² production base to your factory — every machine is carefully assembled, tested and packed before shipment.

All-in-One Flexo Plate Making Machine Production

Bowin Global Production Base - Flexo Plate Making Machine

Flexo Plate Making Machine Wooden Case Packaging

Flexo Plate Making Machine Loading Container

Flexo Plate Making Machine Ready for Shipment

FAQ

Q1: What plate types can this machine process?

This machine processes analog flexographic printing plates and digital flexographic printing plates (except the laser exposure step). It is ideal for large format plates up to 1600 × 1000mm.

Q2: What functions are integrated in this all-in-one machine?

It integrates exposure, plate washing, drying, and de-tacking in one compact unit. There is no need to transfer plates between separate machines, which protects plate quality and saves workshop space.

Q3: What light sources are used?

The machine uses imported Philip specific UVA lamps with Philip rectifier for exposure, and Philips specific UVC light source for removing the sticky layer after drying.

Q4: What is the power requirement?

220V/50Hz/60Hz, Single Phase. Compatible with standard industrial power supply in most countries.

Q5: What is the lead time?

40 days after deposit confirmation. For urgent or custom orders, please contact us for expedited scheduling.

Q6: What key components are imported?

Key imported components include imported Philip UVA lamps with rectifier, Philips UVC light source, Japan Toyo suction membrane, American digital integrated thermo sensor, Japanese Panasonic/Oriental plate washer, and Japanese ORIX constant dry oven.
