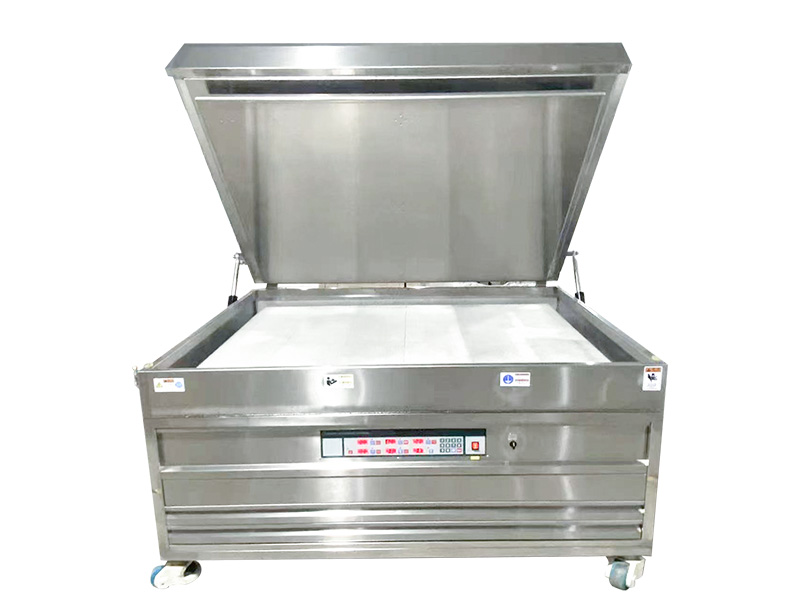

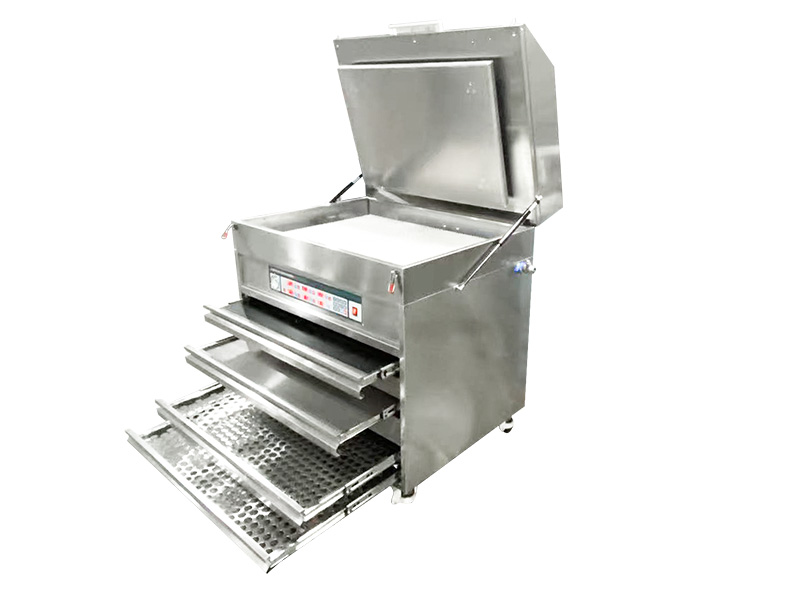

The Bowin Flexo Plate Washer & Dryer is an integrated solvent-based processing unit that combines washing, drying, and detacking in one compact machine. It supports both digital and conventional flexo plates with thickness from 1.70mm to 7.00mm, ideal for corrugated packaging, woven bag, and label printing operations.
Item No :
BW400-BW2100Order(MOQ) :
1 SetPayment :
40% T/T Deposit;60% T/T Before ShippingProduct Origin :
ChinaColor :
Stainless SteelShipping Port :
Shanghai,NingboLead Time :
25-30 days

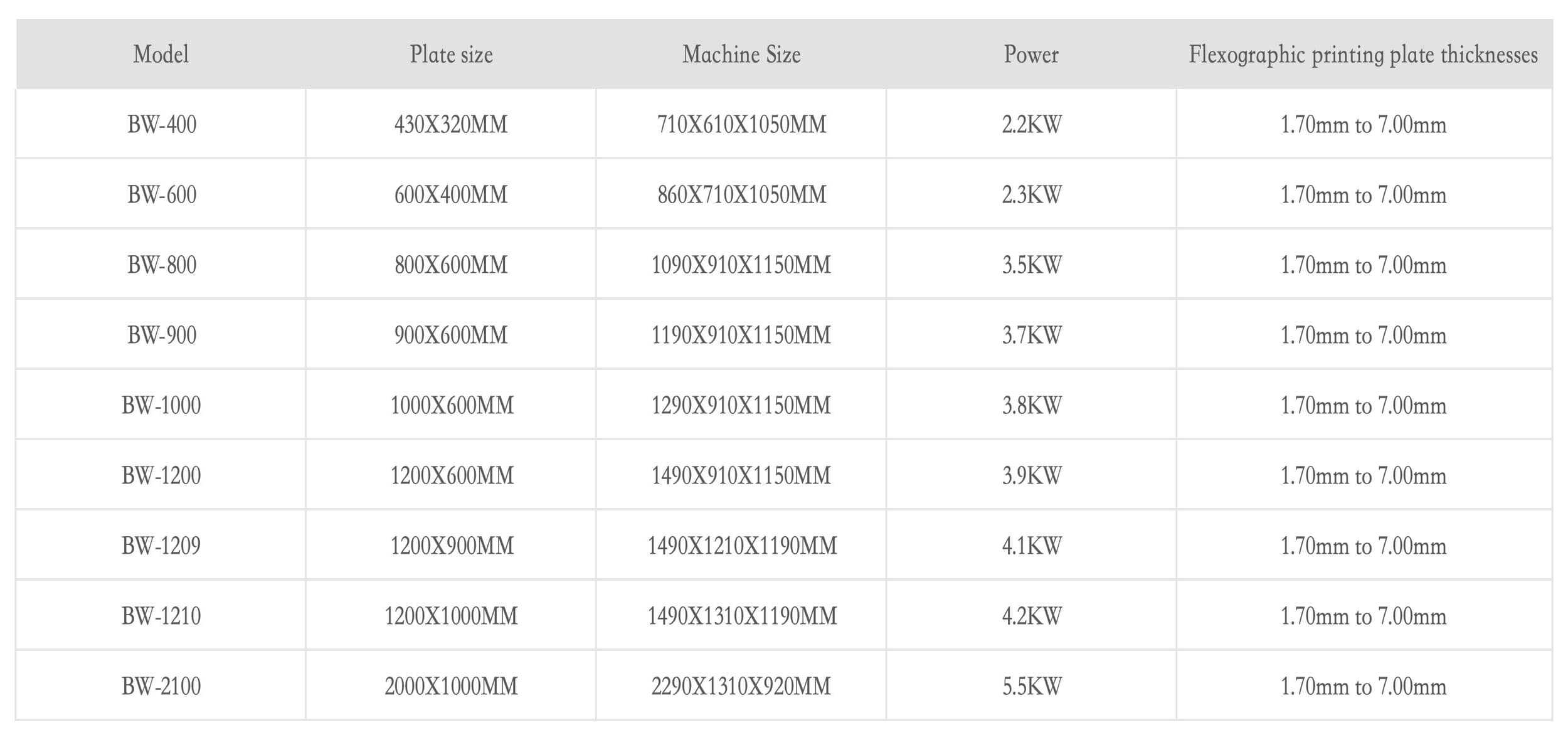

| Model | Plate Size (MM) | Machine Size W×L×H (MM) | Power (kW) | Plate Thickness |
|---|---|---|---|---|
| BW-400 | 430 × 320 | 710 × 610 × 1050 | 2.2 | 1.70 – 7.00 mm |
| BW-600 | 600 × 400 | 860 × 710 × 1050 | 2.3 | 1.70 – 7.00 mm |
| BW-800 | 800 × 600 | 1090 × 910 × 1150 | 3.5 | 1.70 – 7.00 mm |
| BW-900 | 900 × 600 | 1190 × 910 × 1150 | 3.7 | 1.70 – 7.00 mm |
| BW-1000 | 1000 × 600 | 1290 × 910 × 1150 | 3.8 | 1.70 – 7.00 mm |
| BW-1200 | 1200 × 600 | 1490 × 910 × 1190 | 3.9 | 1.70 – 7.00 mm |
| BW-1209 | 1200 × 900 | 1490 × 1210 × 1190 | 4.1 | 1.70 – 7.00 mm |
| BW-1210 | 1200 × 1000 | 1490 × 1310 × 1190 | 4.2 | 1.70 – 7.00 mm |
| BW-2100 | 2000 × 1000 | 2290 × 1310 × 920 | 5.5 | 1.70 – 7.00 mm |
* Special orders with custom sizes accepted!
The Flexo Plate Washer & Dryer is an all-in-one solvent washout unit that integrates washing, drying, and de-sticking into a single compact machine. Designed for both digital and conventional flexo plates, it handles plate thicknesses from 1.70mm to 7.00mm, making it the ideal choice for corrugated packaging, woven bag, label, and folding carton printing operations.
Built with a full stainless steel body for superior durability and corrosion resistance, this machine features imported Philips UVA/UVC lamps, a Japanese Panasonic wash pump, an ORIX constant-temperature drying oven, TOYO-brand vacuum membrane, and a US-made digital temperature sensor with inverter rectifier — ensuring precision control and long service life. With an easy-to-operate computer control panel and real-time monitoring, it delivers consistent, high-quality results batch after batch.
Unlike standard washing-only machines, this integrated unit combines wash, dry, and de-stick in one compact footprint — reducing floor space by up to 40% while eliminating the need for separate drying equipment. Built with globally sourced premium components (Philips, Panasonic, ORIX, TOYO), it delivers industrial-grade reliability with minimal maintenance. The 25-30 day lead time means you get your production line up and running faster than industry average.
Tell us your plate size and production volume, we'll recommend the best configuration for you.
From our 30,000m² production base to your factory — every machine and flexographic printing plate are carefully assembled, tested and packed before shipment.
