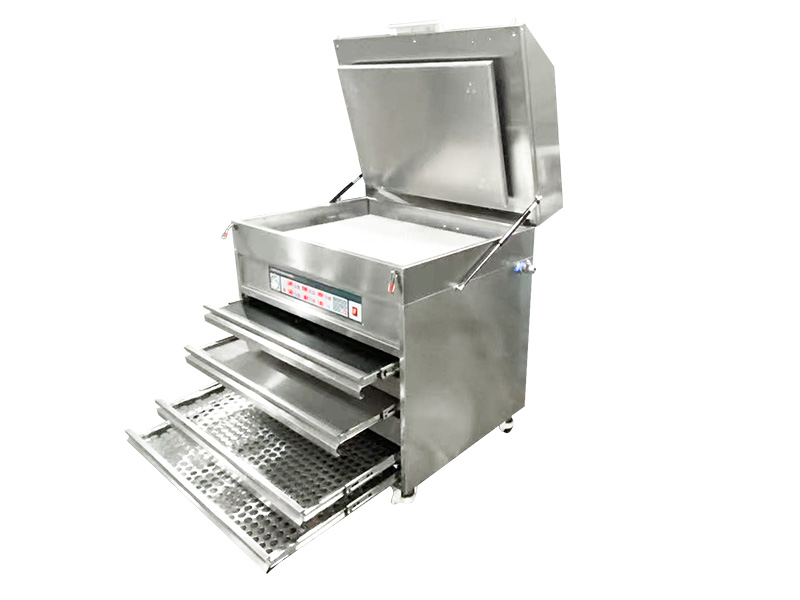

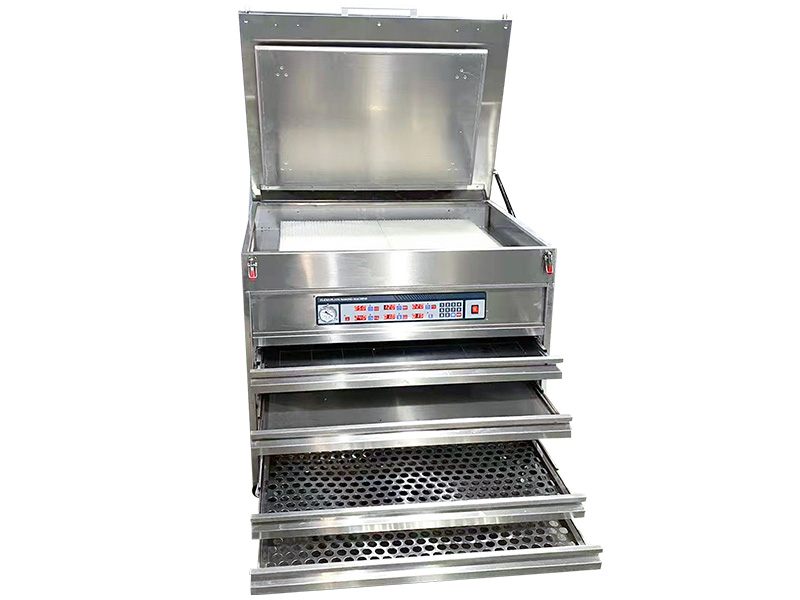

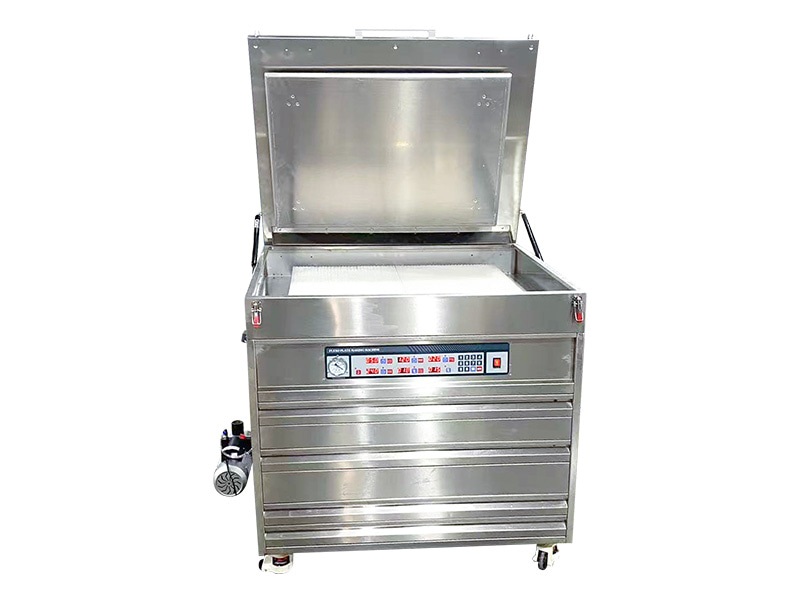

Solvent Base Solid Flexo Plate Making Machine
All-in-one flexo plate making machine integrating exposure, washing, drying & sheet removal for solvent-based plates (1.70–7.00mm). 9 models available,
ideal for corrugated carton, woven bag, label & flexible packaging printing.
Item No :
BW400-BW2100Order(MOQ) :
1 SetPayment :
40% T/T Deposit;60% T/T Before ShippingProduct Origin :
ChinaColor :
Stainless SteelShipping Port :
Shanghai,NingboLead Time :

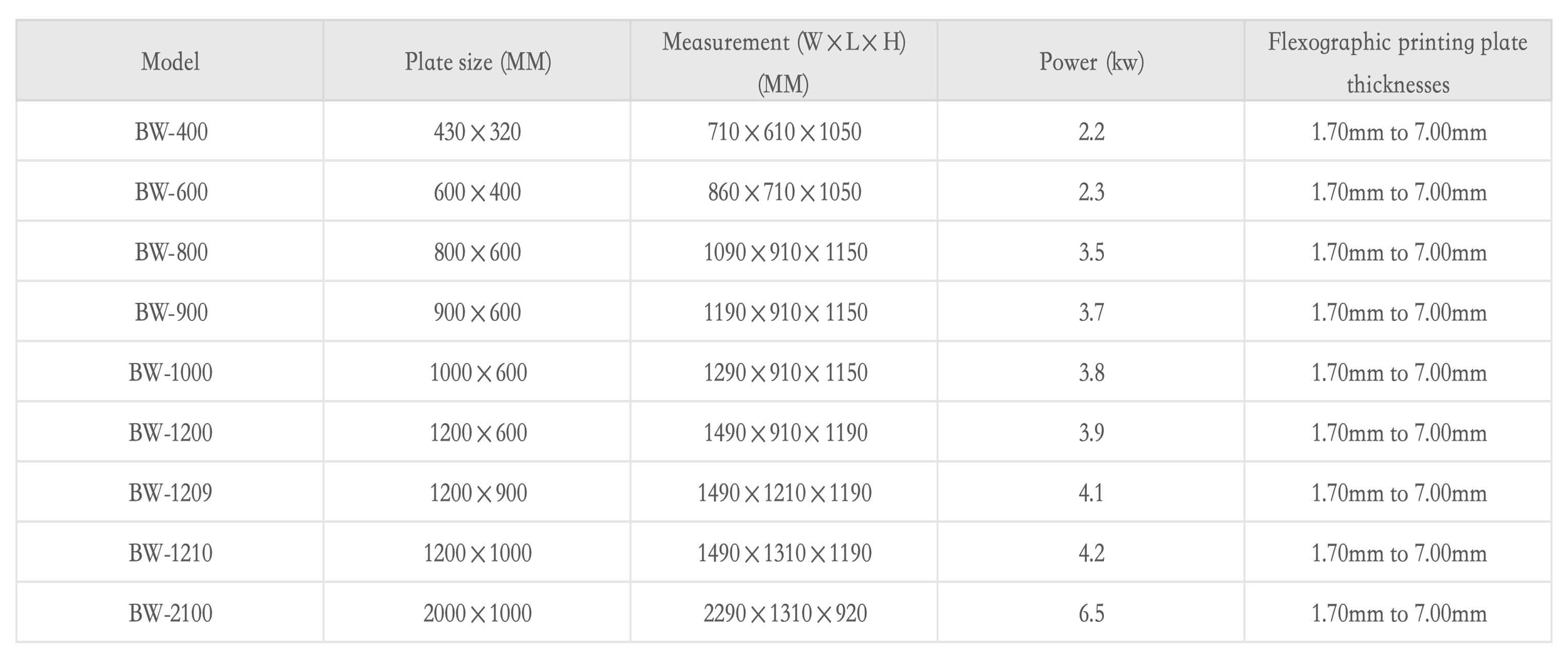

25 days| Model | Plate Size (MM) | Measurement (W×L×H) (MM) | Power (kW) | Flexo Plate Thickness |
|---|---|---|---|---|
| BW-400 | 430 × 320 | 710 × 610 × 1050 | 2.2 | 1.70 – 7.00 mm |
| BW-600 | 600 × 400 | 860 × 710 × 1050 | 2.3 | 1.70 – 7.00 mm |
| BW-800 | 800 × 600 | 1090 × 910 × 1150 | 3.5 | 1.70 – 7.00 mm |
| BW-900 | 900 × 600 | 1190 × 910 × 1150 | 3.7 | 1.70 – 7.00 mm |
| BW-1000 | 1000 × 600 | 1290 × 910 × 1150 | 3.8 | 1.70 – 7.00 mm |
| BW-1200 | 1200 × 600 | 1490 × 910 × 1190 | 3.9 | 1.70 – 7.00 mm |
| BW-1209 | 1200 × 900 | 1490 × 1210 × 1190 | 4.1 | 1.70 – 7.00 mm |
| BW-1210 | 1200 × 1000 | 1490 × 1310 × 1190 | 4.2 | 1.70 – 7.00 mm |
| BW-2100 | 2000 × 1000 | 2290 × 1310 × 920 | 6.5 | 1.70 – 7.00 mm |
Special orders with special sizes accepted!
The flexo plate making machine is used for flexographic printing plate processing and the processed flexographic printing plate is used for flexo printing. This all-in-one machine integrates exposure, washing, drying, and sheet removal into a single compact unit, eliminating the need for separate equipment and simplifying the plate-making workflow.
The machine is constructed of stainless steel for durability and corrosion resistance, featuring imported Philip UVA lamps, Japan Toyo reflective violet suction membrane, computer controller, and American digital integrated thermo sensor. It supports solvent-based solid flexographic printing plates with thickness from 1.70 to 7.00 mm, covering a wide range of plate formats from BW-400 to BW-2100.
The Bowin Solvent Base Solid Flexo Plate Making Machine is an all-in-one solution integrating exposure, washing, drying, and sheet removal into a single compact unit. Built with stainless steel, equipped with imported Philip UVA lamps, Japan Toyo suction membrane, Japanese Panasonic plate washer and ORIX dry oven, it delivers reliable plate-making performance for flexo printers. Available in 9 model sizes from BW-400 to BW-2100, supporting flexo plate thickness from 1.70 to 7.00 mm — making it the versatile choice for corrugated carton, woven bag, label, and flexible packaging printing industries.
Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690
From our 30,000m² production base to your factory — every machine is carefully assembled, tested and packed before shipment.
