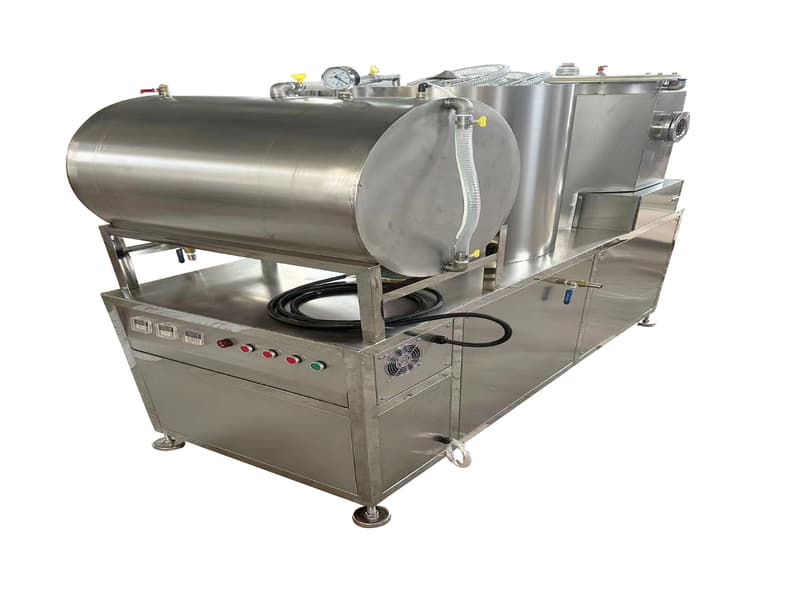

BW Solvent Recycle Machine for flexo plate making & flexographic printing. Heat transfer oil heating, vacuum distillation, stainless steel. 100L / 7.3 kW.
Item No :
BW-100LOrder(MOQ) :
1 SetPayment :
40% T/T Deposit,60% T/T Before ShippingProduct Origin :
ChinaColor :
Stainless SteelShipping Port :
Shanghai,NingboLead Time :
20 daysWeight :
285 KGSProduct Details
| Model | Capacity (L) | Power (kW) | Voltage | Material | L*W*H | Weight (kg) |
|---|---|---|---|---|---|---|
| BW-100L | 100 | 7.3kw | 220V/50Hz | Stainless Steel | 1800*800*1560 | 285 KGS |
The BW Series Solvent Recycle Machine is designed for the flexo plate making and flexographic printing industry.
From the machine instructions (refer to the user manual supplied with the unit), the BW operates by heating waste solvent via heat transfer oil in a vacuum-assisted distillation environment, condensing the vapor back into clean reusable solvent, and discharging the concentrated residue from the bottom port.
The following features are derived directly from the user manual diagram and parts list. Specifications to be confirmed.
Equipped with dedicated heat transfer oil filling port and observation port for indirect heating.
Source: Manual parts #2 / #3
Built-in vacuum barrel and pressure vacuum gauge allow sub-atmospheric operation.
Source: Manual parts #10 / #19
Onboard solvent cooling water tank with dedicated cooling water discharge valve.
Source: Manual parts #9 / #12
Solvent water level observation port and dedicated water level pipe for the recycling solvent.
Source: Manual parts #8 / #11
Built-in high pressure safety valve protects the system during overpressure events.
Source: Manual part #5
Dedicated waste liquid suction valve and 2-inch bottom waste residue discharge port for fast batch turnover.
Source: Manual parts #6 / #17
Separate electrical box with dedicated exhaust fan for heat dissipation.
Source: Manual parts #13 / #14
Dedicated cleaning solvent flow pipe and discharge valve for in-place cleaning.
Source: Manual parts #21 / #22
1. Standard Package — BW series recycling machine host (vacuum pump and heat transfer oil included in some packages; please confirm before order).
2. Setup & Parameter Setting — Connect the power line. Take tetrachloroethylene (PERC) as an example: set the timer to 3h30m, and adjust the temperature controller to 180–210°C. (This parameter must be adjusted according to the solvent type and supplier data.)
3. Operation Procedure — Turn on all switches on the control panel. Wait until the pressure of (19) reaches above -0.06 MPa. Open valve (6) to suck the waste liquid into the recycling machine. Close valve (6) when the waste liquid level (8) reaches the top of the sight glass.
4. Discharge Waste Residue — Note: after about 30 minutes of each recycling cycle, open the side door of the rack (17). There is a 2-inch waste discharge port at the bottom. Open the largest valve to drain the waste before starting the next recycling batch.
Tell us your solvent type, daily waste volume, and required capacity — we'll recommend the best model for you.
