China Large Format Flexo CTP Machine Manufacturer

Product Details

Specification	BW5080F-II	BW5080F-III
Productivity	2.8 m²/h	4.2 m²/h
Max. Plate Size	2032 × 1270 mm (80 × 50 inches)
Plate Thickness	0.11 – 6.35 mm
Output Media	Digital flexographic water-washable / solvent-washable plates; Dry laser film
Application	Label printing, Trade mark, Packaging
Resolution	2400dpi/4800dpi
Loading Method	Manual
Interface	Gigabit Ethernet
Dimension (L×W×H)	3500 × 1630 × 1100 mm
Weight	2700 Kg
Power Supply	8kW / 380V 50/60Hz
Environment	18–30℃, 40–70% RH (non-condensing)

Ideal For

Label & Sticker Printing Flexible Packaging Corrugated Box Printing Folding Carton Printing Trade Mark Printing Pre-Print for Corrugated Board

Why Bowin Global

60+

Countries Served

30,000m²

Production Base

25 Days

Standard Lead Time

OEM/ODM

Custom Solutions

Product Description

The Large Format Flexo CTP Machine is used to engrave digital flexographic printing plates and dry laser films. Available in two models — BW5080F-II (2.8 m²/h) and BW5080F-III (4.2 m²/h) — it features a 2032×1270mm (80×50 inch) maximum imaging area with 2400dpi/4800dpi resolution, supporting plate thicknesses from 0.11mm to 6.35mm.

Equipped with automatic focusing technology, constant-pressure vacuum suction, flatness scanning, and online minification adjustment (97%–100%), the machine ensures consistent, high-quality imaging results. A linear motor scanning system with marble platform guarantees long-term precision, while the gigabit Ethernet interface allows the editing computer to be placed over 100 meters away for flexible workshop layout.

Technical Superiority

Automatic Constant Pressure Adsorption System
For plates of different sizes, ensures the absorbent pressure and adsorption effect are almost the same, so the plate can be adsorbed perfectly.

Online Minification Adjustment
Reduces designer workload — put all the minification for different printing machines into the Flexo CTP and realize the function directly. Minification adjustable for 97%–100%.

Automatic Focusing Technology
For plates of different thickness (0.11–6.35mm), after loading onto the drum, focus adjusts automatically by clicking "Automatic Focusing" to guarantee exposure quality. Workshop temperature range: 18℃–30℃.

Flatness Scanning
High-precision laser scanning verifies plate flatness to ensure center focus in actual clear imaging. Uneven adsorption is immediately reported, reminding the user to re-load and reduce unnecessary loss.

Automatic Dedusting
Activated carbon filtration with real-time pressure monitoring ensures a clean engraving environment.

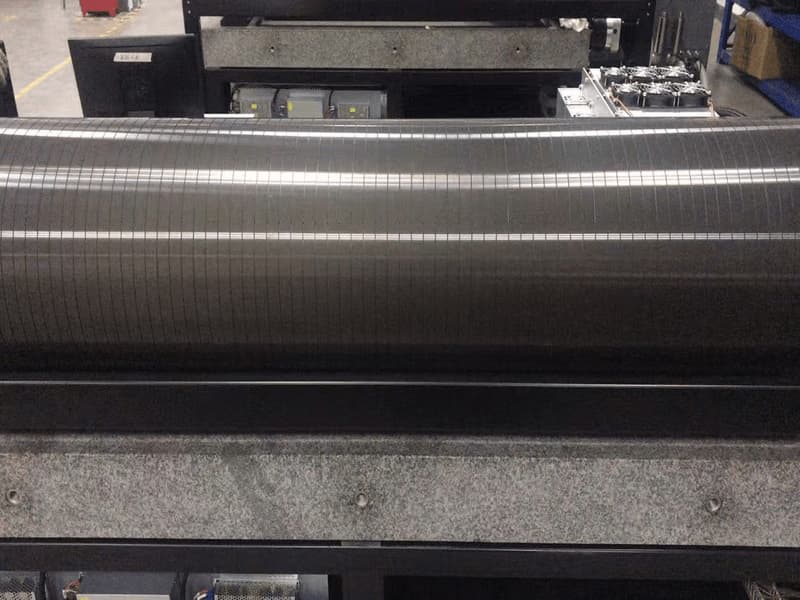

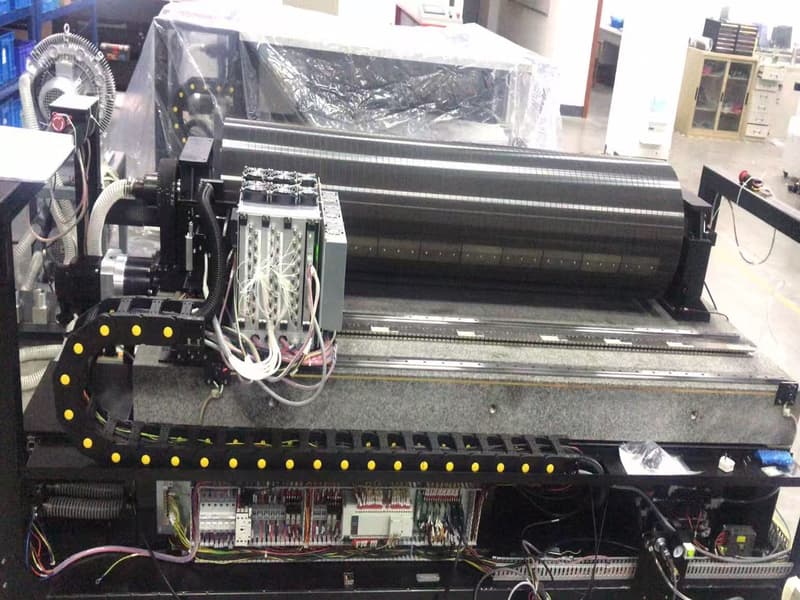

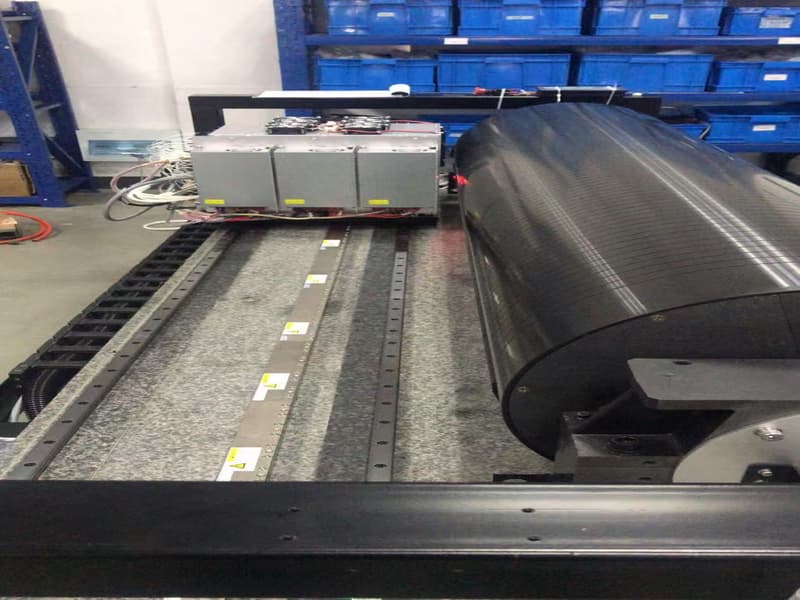

Linear Motor Scanning System
High precision, high speed, and maintenance-free, ensuring stable laser operation. Marble platform with low thermal expansion coefficient provides long-term accuracy.

7-Inch Touch-Screen Monitor
Simple and practical for daily operation.

Bidirectional Pedals
Frees operator's hands to make loading and unloading easier.

Gigabit Ethernet Interface
More stable and reliable data transmission, extending distance over 100 meters between equipment and editing computer.

Compatible Plate Materials

1. Digital photopolymer flexo plate — water wash

2. Digital photopolymer flexo plate — solvent wash

3. Dry laser film (ablation film)

4. Steel-based digital flexo plate

5. Thermal digital flexo plate

Why Choose Large Format Flexo CTP?

Unlike conventional CTP systems, the Bowin Large Format Flexo CTP features automatic focusing technology that compensates for temperature fluctuations (18–30℃), ensuring reliable imaging quality without stringent workshop requirements. The automatic constant-pressure vacuum suction delivers uniform adsorption regardless of plate size, while flatness laser scanning verifies plate quality before engraving — reducing material waste and rework. With bidirectional pedals for hands-free loading and a 7-inch touch-screen for intuitive operation, this machine is designed for maximum throughput and minimum operator effort in high-volume flexographic plate production.

Get a Free Quote Today

Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690

✉ Send Inquiry 📱 WhatsApp：+86 15051421690

PRODUCTION & DELIVERY

From our 30,000m² production base to your factory — every machine is carefully assembled, tested and packed before shipment.

Large Format Flexo CTP Machine - Delivery 4

Large Format Flexo CTP Machine - Delivery 5

Large Format Flexo CTP Machine - Delivery 3

Large Format Flexo CTP Machine - Delivery 6

FAQ

Q1: What types of flexo plates are compatible with this CTP machine?

The machine supports a wide range of digital flexo plate materials, including: digital photopolymer flexo plates (water-wash and solvent-wash), dry laser film (ablation film), steel-based digital flexo plates, and thermal digital flexo plates.

Q2: How does the automatic focusing system work with different plate thicknesses?

The machine supports plates ranging from 0.11mm to 6.35mm in thickness. Once the plate is loaded onto the drum, simply click the "Automatic Focusing" button — the system will automatically adjust the focal distance regardless of plate thickness, ensuring consistent exposure quality every time.

Q3: What are the workshop environmental requirements for this machine?

The Flexo CTP operates reliably at ambient temperatures between 18℃ and 30℃. The built-in automatic focusing technology compensates for temperature fluctuations, making the machine more adaptable to varying workshop conditions compared to conventional CTP systems.

Q4: How far can the editing computer be placed from the machine?

Thanks to the Gigabit Ethernet interface with extended transmission capability, the editing computer can be located more than 100 meters away from the equipment. This gives you flexibility in workshop layout without compromising data stability or speed.
