China Large Format Flexo CTP Manufacturer

Product Details

Specification	BW6048F-II	BW6048F-III
Productivity	2.6 m²/h	4.0 m²/h
Max. Plate Size	1524 × 1270 mm (60 × 50 inches)
Plate Thickness	0.11 – 6.35 mm
Output Media	Digital flexographic Water-washable letterpress plates Digital flexographic Water-washable plates Digital flexographic Solvent-washable plates
Application	Label printing, Trade mark, Packaging
Resolution	2400 dpi/4800 dpi
Loading Method	Manual
Interface	Gigabit Ethernet
Dimension (L×W×H)	2750 × 1550 × 1100 mm
Weight	2200 Kg
Power Supply	380V 50/60Hz, 7kW Peak
Environment	18–30 ℃, 40–70% RH (non-condensing)

Ideal For

Label Printing Trade Mark Printing Flexible Packaging Corrugated Board Printing

Why Bowin Global

60+

Countries Served

30,000m²

Production Base

25 Days

Standard Lead Time

OEM/ODM

Custom Solutions

Product Description

The Bowin Large Format Flexo CTP directly images digital flexo plates and dry laser films with precision thermal laser technology. Available in two models — BW6048F-II (2.6 m²/h) and BW6048F-III (4.0 m²/h) — it features a 1524×1270mm (60×50 inch) maximum imaging area with 2400 dpi/4800 dpi resolution, supporting plate thicknesses from 0.11 mm to 6.35 mm.

Key features include auto-focus (0.11–6.35 mm), constant-pressure vacuum suction, flatness scanning, and online scaling (97%–100%). A linear motor marble-platform drive ensures long-term accuracy, backed by a 7-inch touch screen and gigabit Ethernet. Built for label, flexible packaging, and corrugated printing worldwide.

Technical Superiority

Automatic Constant Pressure Adsorption System
For the plates of different sizes, ensure the absorbent pressure and adsorption effect are almost the same, thus the plate can be adsorbed perfectly.

Online Minification Adjustment
Reduce the workload of Designer, put all the minification for different printing machines into the Flexo CTP, and realize the function of minification on Flexo CTP. The minification can be adjustable for 97–100%.

Automatic Focusing Technology
plates of different thicknesses 0.11-6.35 mm, after the plate is loaded onto the drum, the focus can be adjusted automatically by clicking "Automatic Focusing" whatever the plate thickness is, which can ensure the plate will be exposed at proper focus to guarantee the expose quality. The temperature of the workshop for Flexo CTP is more flexible and the machine can work well when the temperature is 18 ℃–30 ℃.

Flatness Scanning
Plate stick to the drum, flatness laser scanning of the high-precision to verify the plate flatness, to ensure the center focus of the plate in the actual & clear imaging. If uneven adsorption, the error will be immediately reported. It reminds the user to re-load the plate and reduce the unnecessary loss.

Automatic Dedusting
Activated carbon, Filter, Pressure real-time monitoring.

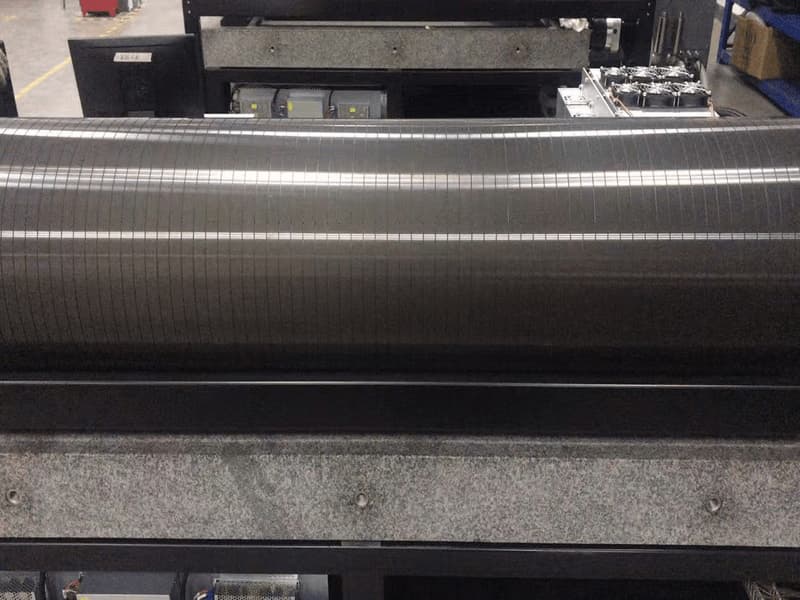

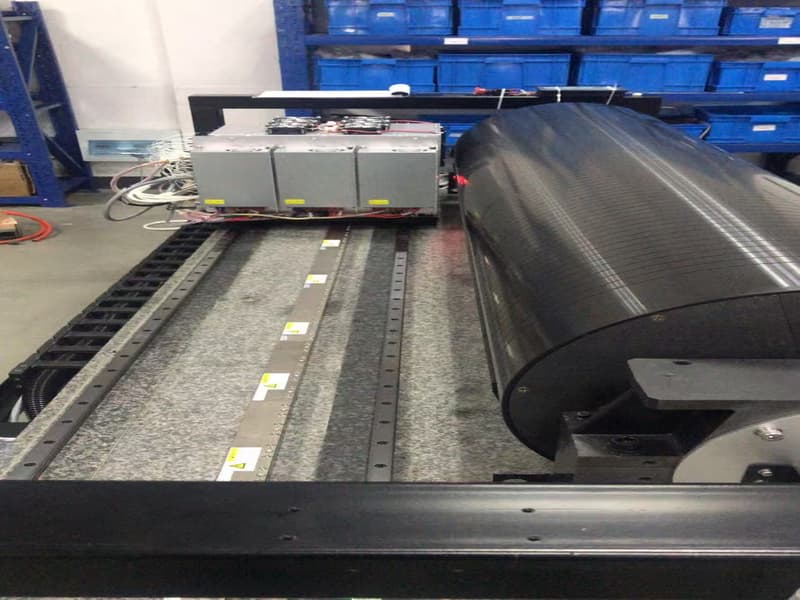

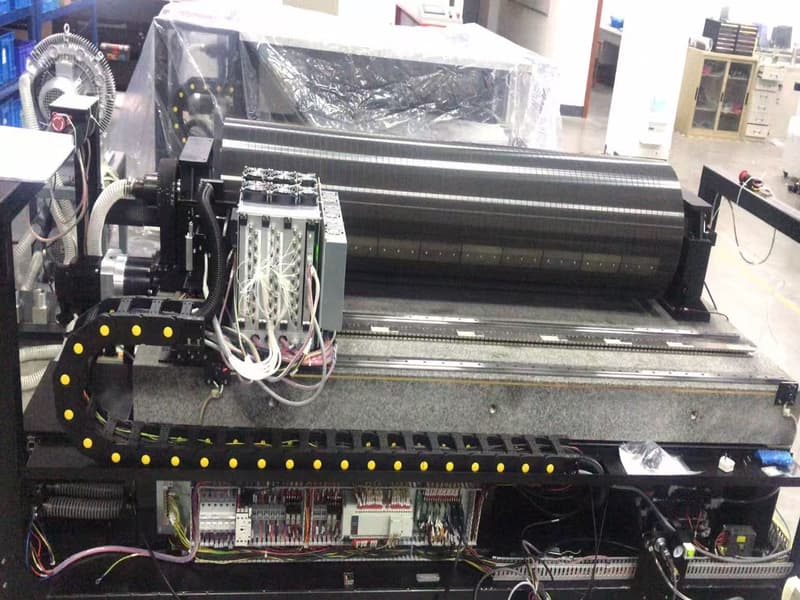

Linear Motor Scanning System
High precision, high speed, and maintenance free, to ensure the stable working of the laser system. Marble Platform: High precision, low temperature factor, extremely precision at long term lifecycle.

7-Inch Touch-screen Monitor
More simple and practical for operation.

Bidirectional Pedals
Free operator's hands to make the loading and unloading process easier.

Gigabit Ethernet Interface
More stable and reliable data transmission, and further of the transmission distance. The distance of the equipment and the editing computer can be more than 100 meters away.

Compatible Plate Materials

1. Digital flexographic water-washable letterpress plates

2. Digital flexographic water-washable plates

3. Digital flexographic solvent-washable plates

4. Dry laser film (ablation film)

5. Thermal digital flexo plate

Why Choose Large Format Flexo CTP?

The Bowin Large Format Flexo CTP with a 1524×1270 mm imaging area bridges the gap between standard and wide-format plate making, offering a versatile solution for label, trade mark, and packaging applications. The automatic constant-pressure vacuum suction ensures uniform plate adsorption regardless of size, while flatness laser scanning verifies plate quality before engraving to minimize waste. With bidirectional pedals for hands-free operation, a 7-inch touch-screen for intuitive control, and gigabit Ethernet for flexible workshop layout, this machine delivers professional-grade performance for converters seeking a compact large-format solution.

Get a Free Quote Today

Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690

✉ Send Inquiry 📱 WhatsApp：+86 15051421690

PRODUCTION & DELIVERY

From our 30,000m² production base to your factory — every machine is carefully assembled, tested and packed before shipment.

FAQ

Q1: What types of flexo plates are compatible with this CTP machine?

The machine supports: digital flexographic water-washable letterpress plates, digital flexographic water-washable plates, digital flexographic solvent-washable plates, dry laser film (ablation film), and thermal digital flexo plates. Explore our complete lineup on the flexographic printing plate page.

For subsequent plate processing, we supply complete post-processing equipment. The core supporting unit is UVA-LED Flexo Plate Exposure Machine. We also offer independent flexo plate washing machines and drying & de-tack units. If you want an all-in-one integrated production line, please refer to our BW Series Eco All-in-One Water-Based Solid Flexo Plate Making Machine.

Q2: How does the automatic focusing system work with different plate thicknesses?

The machine supports plates ranging from 0.11 mm to 6.35 mm in thickness. Once the plate is loaded onto the drum, simply click the "Automatic Focusing" button — the system will automatically adjust the focal distance regardless of plate thickness, ensuring consistent exposure quality for all flexographic printing plates.

Q3: What are the workshop environmental requirements for this machine?

For stable operation, the workshop ambient temperature should be kept between 18 °C and 30 °C, with relative humidity controlled at 40–70% and no condensation. Proper environmental conditions guarantee consistent imaging performance of the flexo CTP.

Q4: How far can the editing computer be placed from the machine?

Equipped with a Gigabit Ethernet interface, the machine allows the editing computer to be placed over 100 meters away. It enables flexible workshop layout planning while maintaining stable data transmission.
