China BW-5280 Scan-type UVA-LED Flexo Plate Exposure Machine Manufacturer

Product Details

Model	Exposure Size (MM)	Machine Size (MM)	Voltage	Power	LED Beads (Pcs)	Energy Output
BW-5280	1320 × 2030	3200 × 1590 × 1310	380V	8kW	3318	20-500mW/cm², uniformity ±3%

* Special orders with custom sizes accepted!

Ideal For

Corrugated Box Printing Woven Bag Printing Label & Sticker Making Folding Carton Printing Paper Bag Printing

Why Bowin Global

60+

Countries Served

30,000m²

Production Base

60 Days

Standard Lead Time

OEM/ODM

Custom Solutions

Product Description

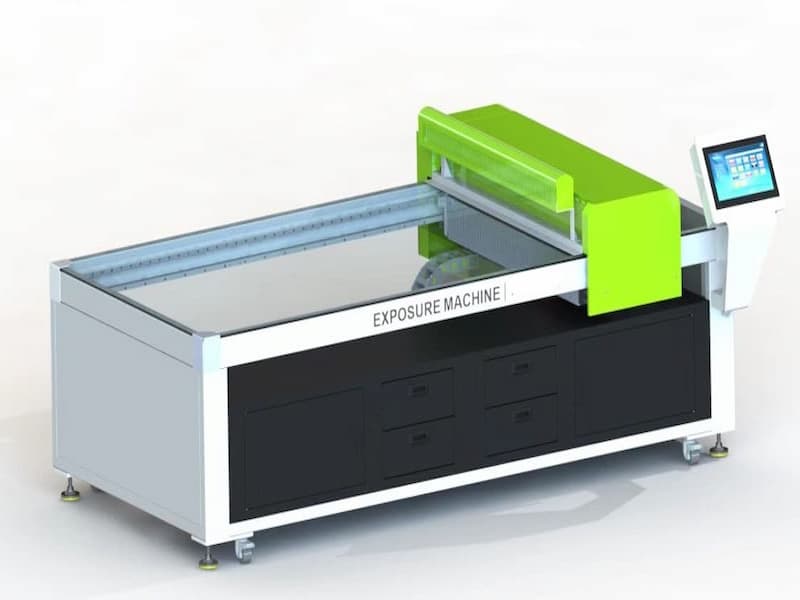

Designed for high-volume packaging plate making, the BW-5280 scanning UV curing unit adopts self-developed touch control logic to stabilize UV output across all plate sizes, covering both digital and traditional flexographic printing materials.

Fitted with dense high-power LED bead groups, it maintains consistent light uniformity throughout the whole exposure area, eliminating uneven curing defects on extra-large 52×80 inch sheet stock.

Dual-sided auto exposure, editable scanning speed modes and built-in temperature monitoring reduce manual operation, making it a reliable continuous-production solution for label, carton and bag printing factories using all thicknesses of our flexo raw plates.

Technical Superiority

LED Long Service Life & 100% Incoming Inspection
UVA-LED arrays with super long service life — no lamp replacements needed. 100% incoming inspection on every bead before assembly.

Independent UV Radiation Calibration
LED control system calibrates UV radiation output independently per scan pass, compensating for bead-level drift to maintain stable energy batch after batch.

3,318 LED Beads — Under 10-Min Full Cycle
High-density 3,318-bead array delivers fast scanning exposure.A complete maximum-format plate cycle finishes within 10 minutes at standard settings.

Independent Energy, Direction & Time Setting
Operators can set UV energy output, scanning direction, and exposure time independently per job — fine-tuned for different plate materials and thicknesses.

Built-in Preset Plate-Making Parameters
Preloaded with mainstream plate material parameters — select the plate type and thickness, no manual calibration or experienced operator required.

Get a Free Quote Today

Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690

✉ Send Inquiry 📱 WhatsApp：+86 15051421690

PRODUCTION & DELIVERY

From our 30,000m² production base to your factory — every machine and flexographic printing plate are carefully assembled, tested and packed before shipment.

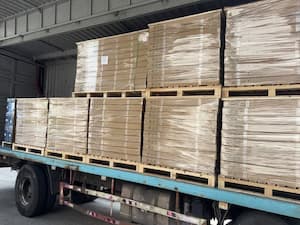

Scan-type UVA-LED beads Flexo Plate Exposure Machine - Delivery 1

Scan-type UVA-LED beads Flexo Plate Exposure Machine - Delivery 2

Scan-type UVA-LED beads Flexo Plate Exposure Machine - Delivery 3

Scan-type UVA-LED beads Flexo Plate Exposure Machine - Delivery 4

Scan-type UVA-LED beads Flexo Plate Exposure Machine - Delivery 5

Scan-type UVA-LED beads Flexo Plate Exposure Machine - Delivery 6

Scan-type UVA-LED beads Flexo Plate Exposure Machine - Delivery 7

FAQ

Q1: Besides the BW-5280 scan-type exposure machine, what other flexo plate exposure machines do you offer?

The BW-5280 scan-type model is optimized for solid photopolymer and digital flexo plates used in label, carton, and bag printing. We also offer a range of lift-type UVA-LED flexo plate exposure machines in different formats and specifications. Both scan-type and lift-type models can be configured into a complete plate-making production line.

Q2: What types of flexo plates can this scan-type exposure machine process? Can it make liquid resin flexo plates?

It is designed for solid sheet photopolymer plates and digital flexo plates used for labels, cartons and woven bags. If you need to produce liquid resin thick plates for corrugated packaging, please check our Lift-Type Liquid Resin Flexographic Printing Plate Exposure Machi ne to form a complete plate-making production line.

Q3: What floor space and power supply do I need?

Machine footprint is 3200 × 1590 × 1310 mm (L×W×H). Allow at least 1 meter of clearance on all sides for operation and maintenance. Standard power is 380V / 50Hz / 3-phase, 8 kW. We can configure 220V or 60Hz on request — confirm your local supply before ordering.

Q4: Are scanning speed, UV intensity and exposure modes adjustable on this machine?

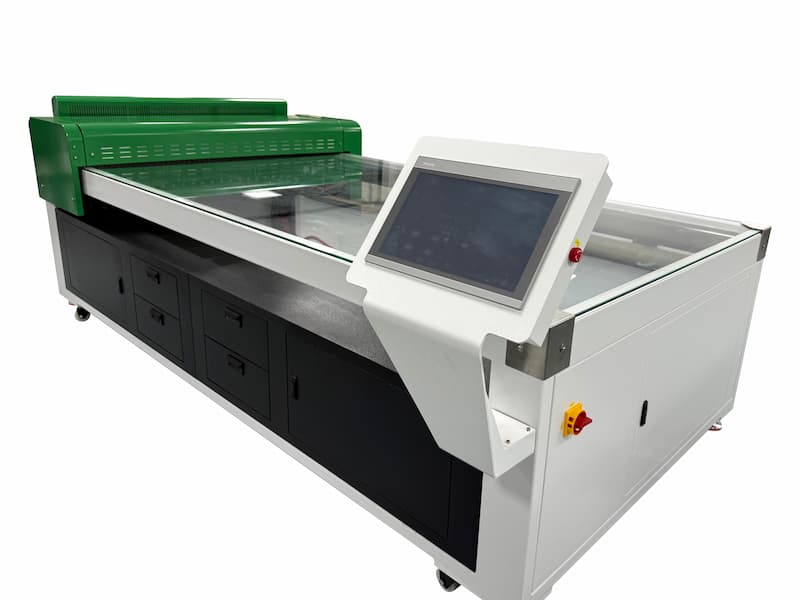

Yes. Equipped with a 10-inch PLC touchscreen, operators can freely set scanning direction, running speed, UV output, single-sided or double-sided exposure. Common plate material parameters are preset in the system for fast job switching.

Q5: Where can I purchase matching flexo printing plates for this equipment?

We supply full supporting consumables for the exposure machine. You can get high-quality solid photopolymer flexo plates and related film materials from our photopolymer flexo plates product line to match your whole plate-making workflow.

Q6: What warranty, after-sales and customized services can you provide?

Core LED light source and PLC control system enjoy 12 months warranty after shipment. We offer lifelong cost-effective spare parts supply, free online operation training and 24-hour WhatsApp technical support. OEM & ODM customization on size, voltage and interface language is acceptable.
