China Automatic Lifting LED‑Tube Solvent Flexographic Plate Exposure Making Machine Manufacturer

Product Details

Model	Exposure Size (MM)	Machine Size (MM)	Voltage	Power	Lamps
BW-1220	1220 × 920	2390 × 1500 × 1260	220V	3.7kW	34pcs 60W/UVA, or LED
BW-1530	1530 × 1070	2500 × 1500 × 1220	220V/380V	4.1kW	40pcs 60W/UVA, or LED
BW-2030	2030 × 1320	2900 × 1700 × 1260	220V/380V	6.5kW	44pcs 80W/UVA, or LED
BW-2540	2540 × 1320	3450 × 1700 × 1260	220V/380V	7.8kW	54pcs 80W/UVA, or LED

Ideal For

Corrugated Carton Printing Woven Bag Printing Label Printing Flexible Packaging

Why Bowin Global

60+

Countries Served

30,000m²

Production Base

45 Days

Standard Lead Time

OEM/ODM

Custom Solutions

Product Description

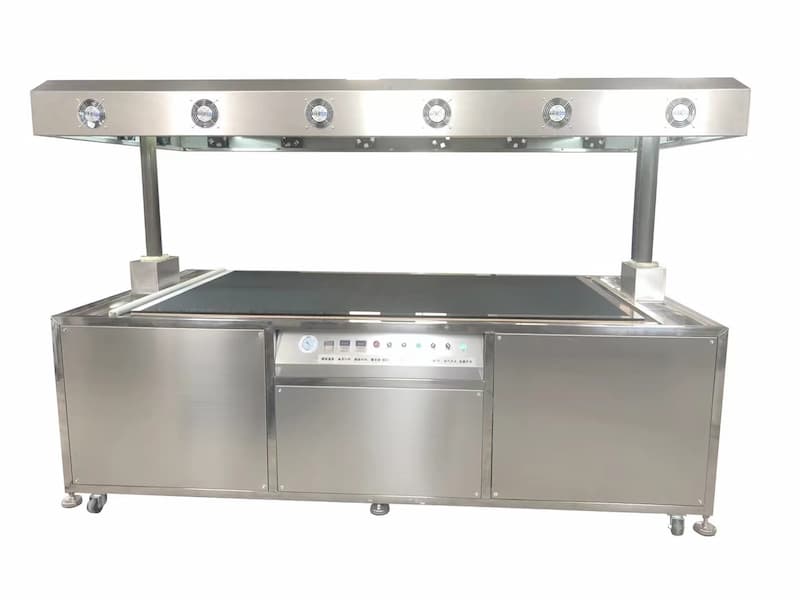

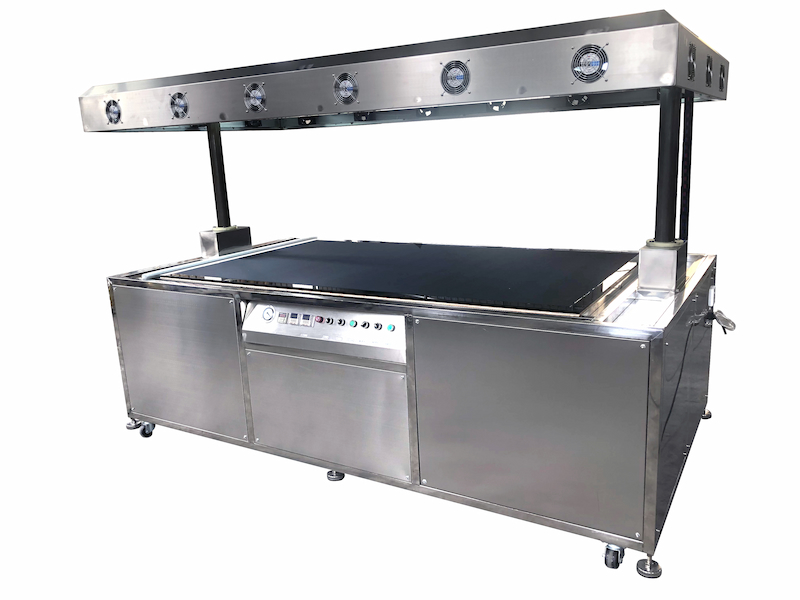

The Automatic Lifting LED‑Tube Solvent Flexographic Plate Exposure Making Machine is built for solvent‑based solid flexo plate processing. It comes with an aluminum exposure platform with automatic water/wind cooling and motor‑driven lifting structure, delivering precise, consistent exposure for high‑quality flexo plates. This machine supports both traditional UVA lamps and energy‑saving LED tubes to satisfy different production budgets. Four models (BW‑1220 to BW‑2540) cover exposure sizes from 1220×920 mm up to 2540×1320 mm, widely used for carton, woven‑bag and label flexo plate‑making.

Technical Superiority

Automatic Lifting Structure
Motor‑driven lifting structure for easy plate loading & unloading. Reduce manual work and boost production efficiency.

Dual Cooling System
Dual‑cooling for aluminum exposure platform: automatic water‑cooling /air‑cooling, avoid overheating during long‑time running.

UVA & LED Lamp Options
Optional traditional UVA lamp or energy‑saving LED tube, flexible for different budget & quality‑level requirements.

Aluminum Exposure Platform
High‑grade aluminum working platform with outstanding heat dissipation & flatness, guaranteeing even light distribution over full exposure zone.

4-Size Model Coverage
Four available models BW‑1220 ~ BW‑2540, exposure range:1220×920 mm‑2540×1320 mm, fits diverse plate dimensions.

Solvent Plate Compatible
Specially optimized for solvent‑processed solid flexo plates, ideal for corrugated carton, woven bag, label & flexible packaging printing.

Flexible Voltage Support
Multiple voltage options:220V / 380V, compatible with factory power supply standards globally.

Scalable Lamp Configuration
Adjustable lamp quantity (34‑54 pcs) matching different model sizes, sufficient UV intensity for stable exposure quality for all plate formats.Get a Free Quote Today

Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690

✉ Send Inquiry 📱 WhatsApp：+86 15051421690

PRODUCTION & DELIVERY

From our 30,000m² production base to your factory — every machine and flexographic printing plate are carefully assembled, tested and packed before shipment.

Solvent Flexo Plate Exposure Machine Production

Bowin Global Production Base - Solvent Exposure Machine

Solvent Flexo Plate Exposure Machine Packing

Solvent Exposure Machine Wooden Case Packaging

Solvent Flexo Plate Exposure Machine Loading Container

Solvent Exposure Machine Ready for Shipment

FAQ

Q1: What plate types can this machine process?

This machine is designed for processing solvent-based solid flexographic printing plates. The processed plates are mainly used for corrugated carton, woven bag, label, and flexible packaging printing applications.

Q2: How many model sizes are available?

Four standard models are available: BW-1220, BW-1530, BW-2030, and BW-2540, covering exposure sizes from 1220×920mm to 2540×1320mm.

Q3: What lamp options are available?

The machine supports both traditional UVA lamps and LED exposure options. Lamp quantity ranges from 34pcs (60W) to 54pcs (80W) depending on model size.

Q4: What cooling system does it use?

The exposure platform features an aluminum plate with automatic water cooling or wind cooling, preventing overheating and ensuring stable exposure quality during continuous operation.

Q5: What is the lead time?

45 days after deposit confirmation. For urgent or custom orders, please contact us for expedited scheduling.

Q6: What after-sales support do you provide?

Comprehensive after-sales support including installation guidance, operation training, troubleshooting assistance, and spare parts supply. Our team is available on-site or online to ensure your machine runs smoothly.
