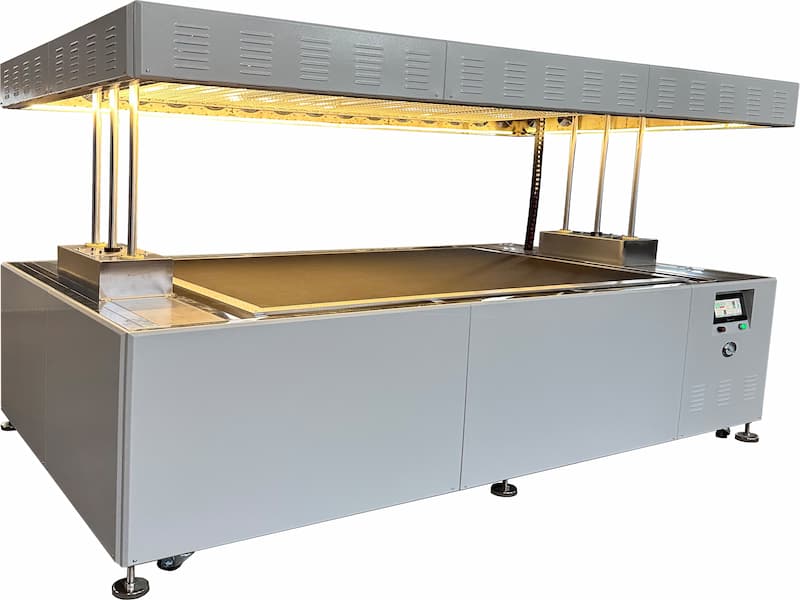

Flexo Plate Drying and Light Finishing Machine
Professional flexo plate drying and light finishing machine for solvent-based flexographic printing plates. Integrates UVA/UVC hybrid light
source for de-adhesion andpost-exposure drying in one unit. Suitable for BW-1220 to BW-2540 series.
Item No :
BW-1220 - BW-2540Order(MOQ) :
1 SetPayment :
40% T/T Deposit;60% T/T Before ShippingProduct Origin :
ChinaColor :
Stainless SteelShipping Port :
Shanghai,NingboLead Time :

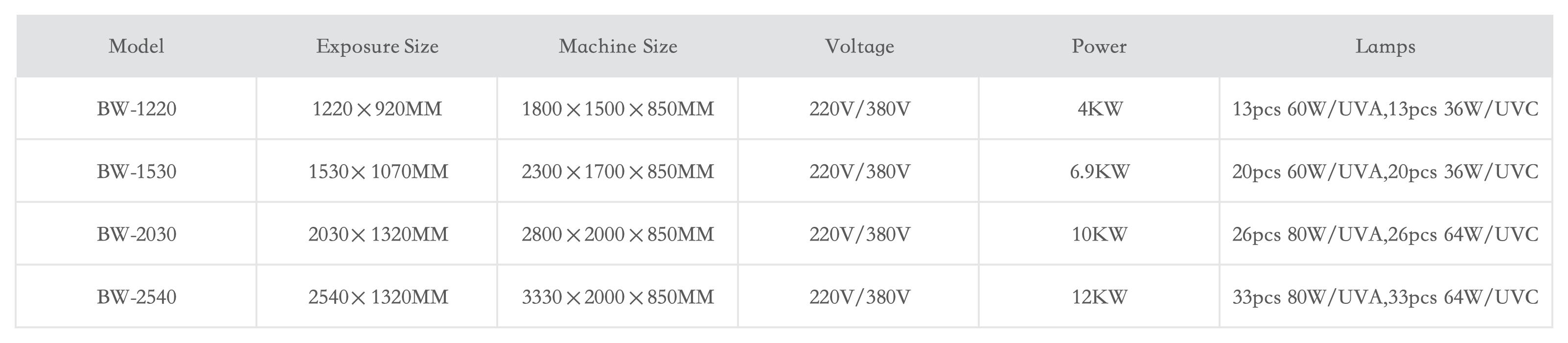

45days| Model | Exposure Size | Machine Size | Voltage | Power | Lamps |
|---|---|---|---|---|---|
| BW-1220 | 1220 × 920 mm | 1800 × 1500 × 850 mm | 220V / 380V | 4kW | 13pcs 60W/UVA, 13pcs 36W/UVC |
| BW-1530 | 1530 × 1070 mm | 2300 × 1700 × 850 mm | 220V / 380V | 6.9kW | 20pcs 60W/UVA, 20pcs 36W/UVC |
| BW-2030 | 2030 × 1320 mm | 2800 × 2000 × 850 mm | 220V / 380V | 10kW | 26pcs 80W/UVA, 26pcs 64W/UVC |
| BW-2540 | 2540 × 1320 mm | 3330 × 2000 × 850 mm | 220V / 380V | 12kW | 33pcs 80W/UVA, 33pcs 64W/UVC |
BW series integrated post-processing unit targets solvent washed flexo plates, merging three separate production steps into one workstation. Operators no longer need to transfer semi-finished plates between independent drying, detack and secondary exposure machines, effectively reducing surface scratches and labor handling costs.
We rolled out four standardized sizes to match different plate making widths, covering small label factories and large corrugated packaging manufacturers. The integrated UV light system and closed constant temperature oven deliver stable finished plate quality for solvent photopolymer platemaking lines.
Traditional separated platemaking equipment takes extra workshop space and requires more staff to move plates back and forth. Our all-in-one finishing station solves these production pain points fundamentally. Every set of BW series equipment undergoes full aging testing before delivery. The split lamp design simplifies later maintenance without stopping the whole production line, while enclosed circulation heating avoids uneven plate hardness caused by temperature fluctuation. No matter you run small batch label printing or mass corrugated carton production, our standardized sizes and customizable frame solutions can fit your existing platemaking workflow perfectly.
Tell us your plate size and monthly volume, we'll recommend the best model for you.
If chat link fails, add us manually: WhatsApp +86 15051421690
From our 30,000m² production base to your factory — every machine is carefully assembled, tested and packed before shipment.
Professional flexo plate drying and light finishing machine for solvent-based flexographic printing plates. Integrates UVA/UVC hybrid light source for de-adhesion andpost-exposure drying in one unit. Suitable for BW-1220 to BW-2540 series.
