1) Excellent dot and isolated line reproduction
2) Solid printing performance
3) High latitude of exposure and processing
4) Good ink transfer
5) High impression

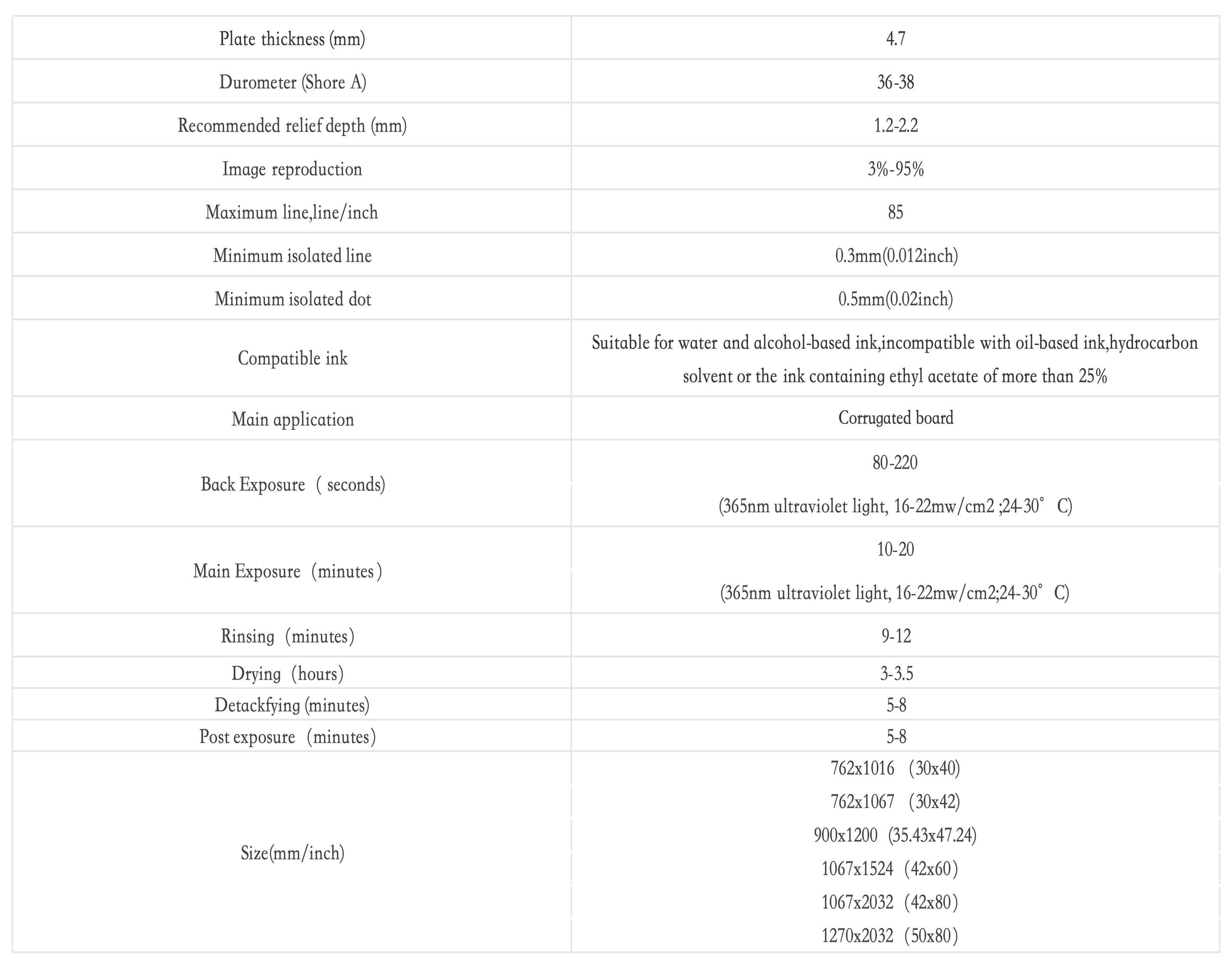

| Plate Thickness (mm) | 4.7 |
| Durometer (Shore A) | 36–38 |
| Recommended Relief Depth (mm) | 1.2–2.2 |
| Image Reproduction | 3%–95% |
| Maximum Line, Line/Inch | 85 |
| Minimum Isolated line | 0.3mm (0.012inch) |
| Minimum Isolated Dot | 0.5mm (0.02inch) |
| Compatible Ink |
Suitable for water and alcohol-based ink, incompatible with oil-based ink, hydrocarbon solvent or ink containing ethyl acetate of more than 25% |
| Main Application | Corrugated Board |
| Back Exposure (seconds) | 80–220 sec (365nm UV light, 16-22mw/cm², 24-30°C) |
| Main Exposure (minutes) | 10–20 min (365nm UV light, 16-22mw/cm², 24-30°C) |
| Rinsing (minutes) | 9–12 min |
| Drying (hours) | 3–3.5 hours |
| Detackifying (minutes) | 5–8 min |
| Post Exposure (minutes) | 5–8 min |
| Size(mm/inch) |
762×1016 (30×40) 762×1067 (30×42) 900×1200 (35.43×47.24) 1067×1524 (42×60) 1067×2032 (42×80) 1270×2032 (50×80) |
