Wide range of applications:

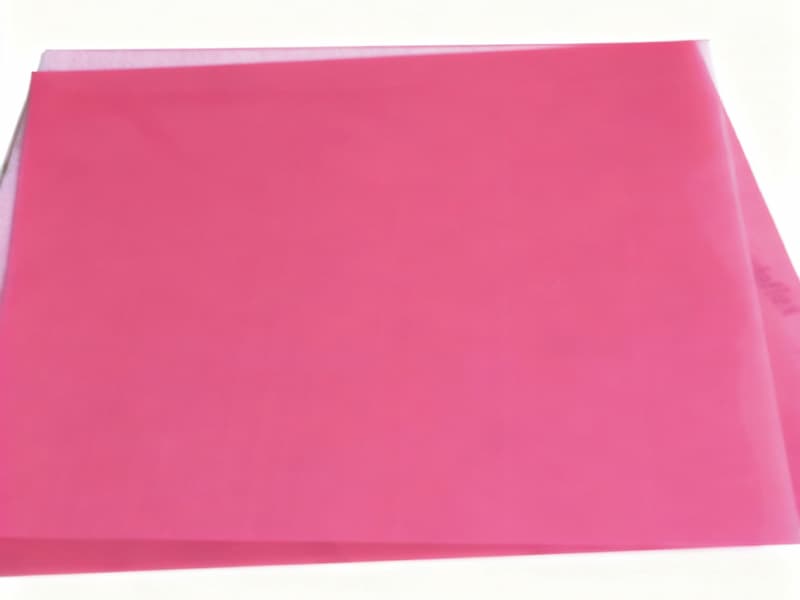

1. 0.95mm water-wash flexo plate is mainly used to print self-adhesive labels, tubes, plastics and continuous forms printing.
2. Suitable for rotary letterpress, embossing units and special printing machines.
Highest printing quality:
1. Wide tonal range for high print contrast
2. Achieve a minimum dot size of less than 20 microns, reproducing perfect midtone gradations
3. Flat matte surface
4. Resolution up to 10,000 dpi
5. Excellent ink transfer performance for perfect solid density reproduction
6. Long run time
7. Reusable plates for repeat orders
Efficient, reliable, and fast platemaking:
1. Wide exposure latitude and deep relief depth
2. The platemaking process takes only 25-35 minutes, providing high production efficiency and cost savings
3. Reduced platemaking time prevents damage during the process
4.Tap water washable plates ensure an environmentally friendly platemaking process
Excellent plate mounting characteristics:
1.High transparency of the base material
2.High color contrast of the printed relief layer
3.The polyester base is flexible and adapts well to various plate cylinder diameters.

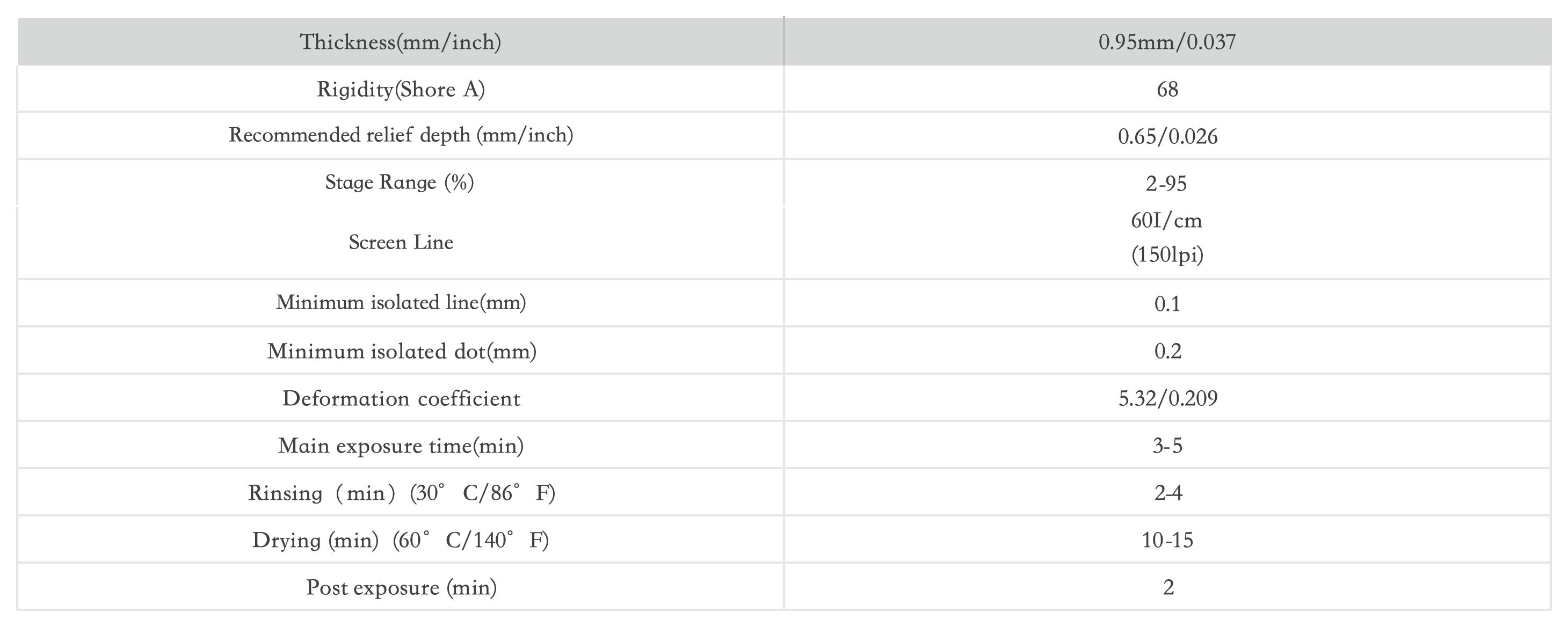

| THICKNESS(mm/inch) | 0.95mm/0.037 |
| Rigidity(Shore A) | 68 |
|
Recommended relief depth (mm/inch)
|
0.65/0.026 |
|
Stage Range (%) Screen Line |
2-95 60I/cm (150lpi) |
|
Minimum isolated line(mm)
|
0.1 |
|
Minimum isolated dot(mm)
|
0.2 |
|
Deformation coefficient
|
5.32/0.209 |
|
Main exposure time(min)
|
3-5 |
|
Rinsing（min）(30°C/86°F)
|
2-4 |
|
Drying (min) (60°C/140°F)
|
10-15 |
|
Post exposure (min)
|
2 |
Wide range of applications: 1. 0.95mm water-wash flexo plate is mainly used to print self-adhesive labels, tubes, plastics and continuous forms printing. 2. Suitable for rotary letterpress, embossing units and special printing machines.
