1) Excellent dot and isolated line reproduction
2) Solid printing performance
3) High latitude of exposure and processing
4) Good ink transfer
5) High impression

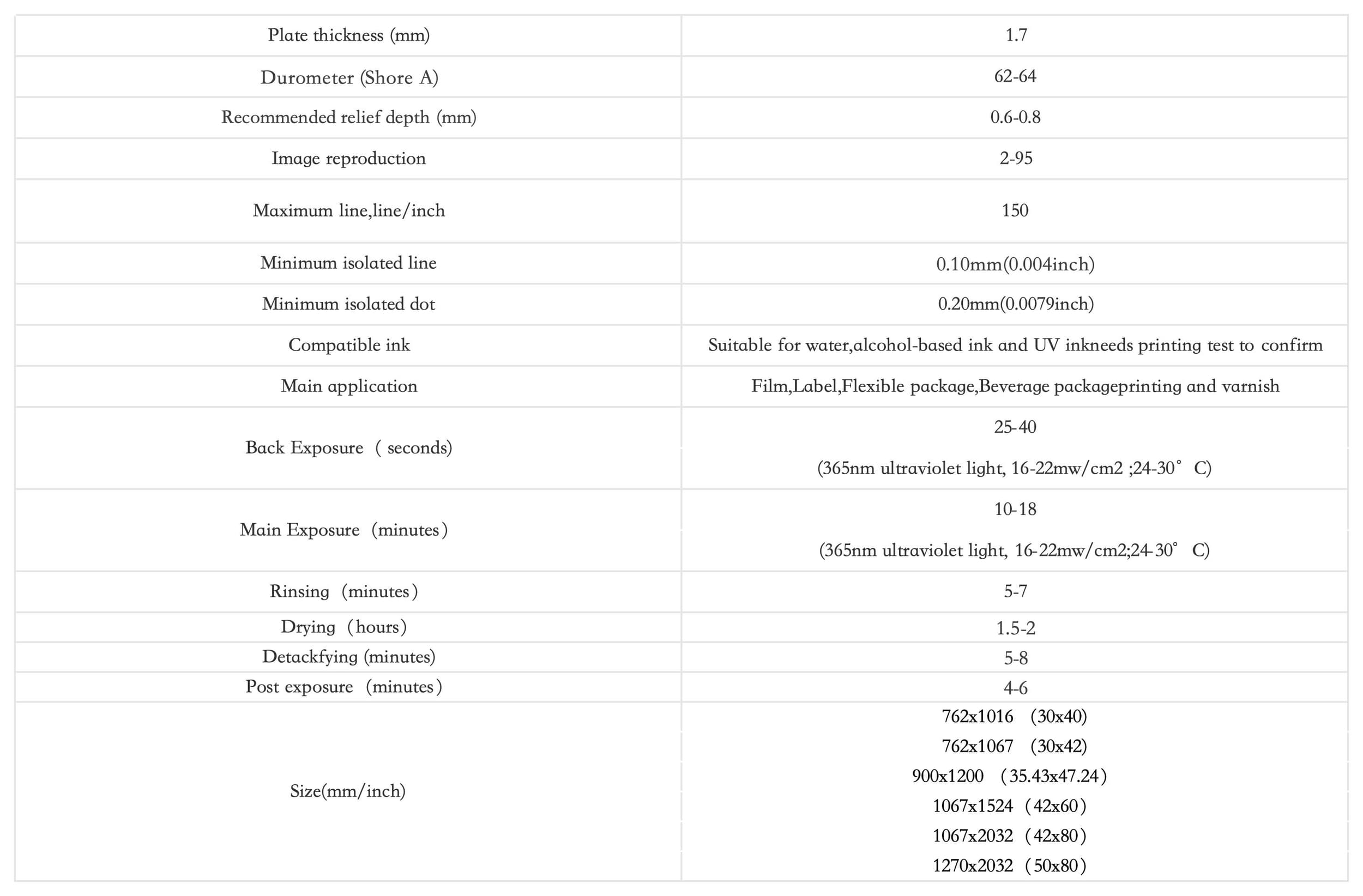

| Plate Thickness | 1.7 mm |
| Durometer (Shore A) | 62–64 |
| Recommended Relief Depth | 0.6–0.8 mm |
| Image Reproduction | 2%–95% |
| Maximum Line/Inch | 150 |
| Minimum Isolated Line | 0.10mm (0.004 inch) |
| Minimum Isolated Dot | 0.20mm (0.0079 inch) |
| Compatible Ink | Suitable for water, alcohol-based ink and UV ink, needs printing test to confirm |
| Main Application | Film, Label, Flexible package, Beverage package printing and varnish |
| Back Exposure | 25–40 sec (365nm UV light, 16-22mw/cm², 24-30°C) |
| Main Exposure | 10–18 min (365nm UV light, 16-22mw/cm², 24-30°C) |
| Rinsing | 5–7 min |
| Drying | 1.5–2 hours |
| Detackifying | 5–8 min |
| Post Exposure | 4–6 min |
| Sizes(mm/inch) |
762×1016 (30×40) 762×1067 (30×42) 900×1200 (35.43×47.24) 1067×1524 (42×60) 1067×2032 (42×80) 1270×2032 (50×80) |
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
Wide range of applications: 1. 0.95mm water-wash flexo plate is mainly used to print self-adhesive labels, tubes, plastics and continuous forms printing. 2. Suitable for rotary letterpress, embossing units and special printing machines.
