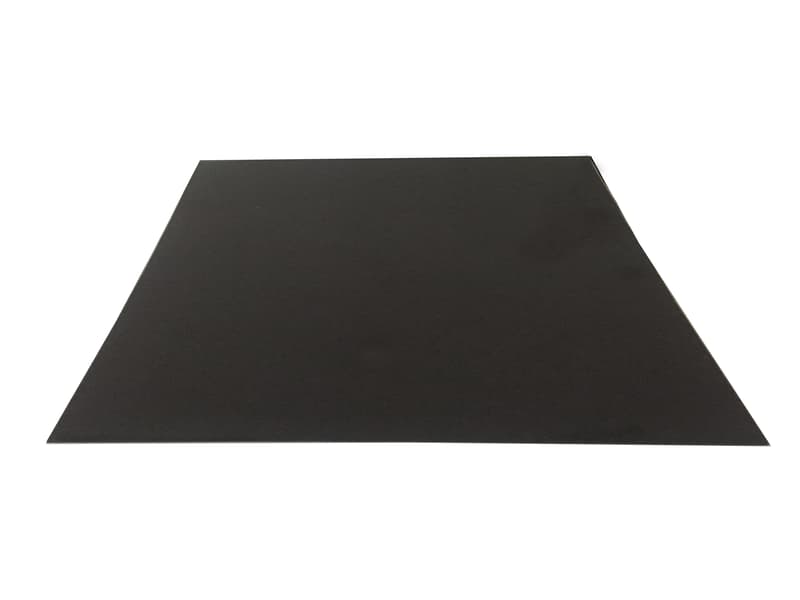

3.94mm Digital Photopolymer Flexographic printing plate for flexo printing
1) Excellent dot and isolated line reproduction
2) Solid printing performance
3) High latitude of exposure and processing
4) Good ink transfer
5) High impression

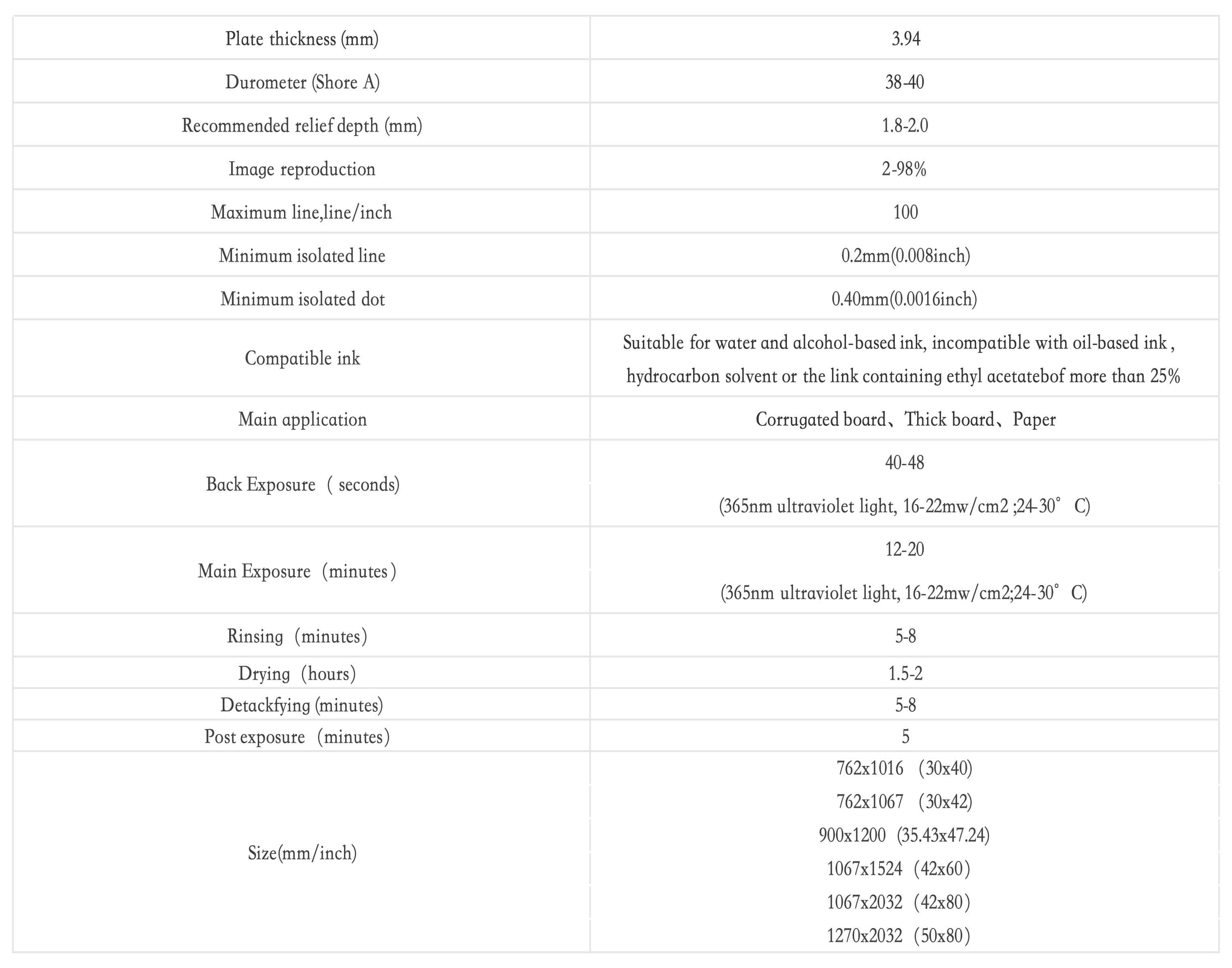

| Plate thickness (mm) | 3.94 |
| Durometer (Shore A) | 38-40 |
| Recommended relief depth (mm) | 1.8-2.0 |
| Image reproduction | 2-98% |
| Maximum line,line/inch | 100 |
| Minimum isolated line | 0.20mm(0.008inch) |
| Minimum isolated dot | 0.40mm(0.0016inch) |
| Compatible ink | Suitable for water and alcohol-based ink, incompatible with oil-based ink，hydrocarbon solvent or the link containing ethyl acetatebof more than 25% |
| Main application | Corrugated board、Thick board、 Paper |
| Back Exposure（seconds) |
40-80 (365nm ultraviolet light,16-22mw/cm2;24-30°C) |
| Main Exposure（minutes） |
12-20 (365nm ultraviolet light,16-22mw/cm2;24-30°C) |
| Rinsing（minutes） | 5-8 |
| Drying（hours） | 1.5-2 |
| Detackfying (minutes) | 5-8 |
| Post exposure（minutes） | 5 |
| Size(mm/inch) |
762x1016 （30x40) 762x1067 (30x42) 900x1200 (35.43x47.24) 1067x1524（42x60） 1067x2032（42x80） 1270x2032（50x80) |
Wide range of applications: 1. 0.95mm water-wash flexo plate is mainly used to print self-adhesive labels, tubes, plastics and continuous forms printing. 2. Suitable for rotary letterpress, embossing units and special printing machines.
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
1) Excellent dot and isolated line reproduction 2) Solid printing performance 3) High latitude of exposure and processing 4) Good ink transfer 5) High impression
Details
