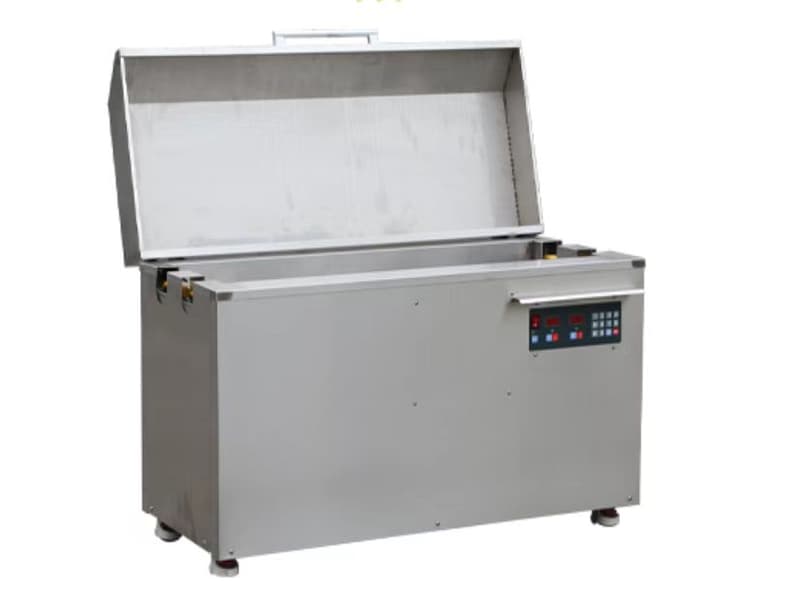

China BW Series Anilox Ultrasonic Cleaning Machine Manufacturer

Product Details

Model	Ultrasonic Transducers (pcs)	Ultrasonic Power (W)	Ultrasonic Frequency (KHz)	Heating Power (W)	Anilox Rolls per Clean (pcs)	Anilox Roll Length (mm)	Temp. Range (°C)	Power Supply (V)
BW-320	16	960	40	1000	2	0-350	20-100	220
BW-450	18	1080	40	1000	2	0-450	20-100	220
BW-650	24	1440	40	1000	2	0-660	20-100	220
BW-850	27	1620	40	2000	2	0-860	20-100	220
BW-1000	33	1980	40	2000	2	0-1060	20-100	220
BW-1200	39	2340	40	2000	2	0-1280	20-100	220
BW-1300	42	2520	40	2000	2	0-1360	20-100	220
BW-1500	48	2880	40	3000	2	0-1560	20-100	220
BW-1800	60	3600	40	3000	2	0-1860	20-100	220

Note: Special orders with special size accepted.

Ideal For

Anilox Roll Maintenance

Why Bowin Global

60+

Countries Served

30,000m²

Production Base

40 Days

Standard Lead Time

OEM/ODM

Custom Solutions

Product Description

The BW Series Anilox Ultrasonic Cleaning Machine is an economical and practical cleaning equipment designed for safe and effective cleaning of anilox rolls. Featuring a suspension type design with switchable single and multiple frequencies, it delivers stable 40 KHz single-frequency operation with strong penetration, as well as multi-frequency capability to remove stubborn dirt with low frequency followed by high-precision cleaning.

Built with a full waterproof stainless steel shell for durability and safety, the machine is equipped with a heating and constant temperature system, all-swivel casters for mobility, and customizable cleanser sizes to meet different production needs. The cleaning liquid can be prepared with tap water and a small amount of special solvent, while the high-power cleaning effect produces fine cavitation visible to the naked eye.

Key Features

Single & Multiple Frequency
Suspension type design switchable between single (40 KHz) and double frequency for different cleaning stages

Safe & Effective Cleaning
Removes dried ink and debris from anilox roll cells without damaging the delicate ceramic or chrome surface

Heating & Constant Temperature
Built-in heating system maintains optimal cleaning temperature between 20°C and 100°C for enhanced performance

Waterproof Stainless Steel Shell
Fully improved waterproof function with durable stainless steel housing ensures long service life and safe operation

Customizable & Mobile
Customized cleaning tank sizes are available; equipped with all-swivel casters for easy movement in workshop

Visible Cavitation Power
High-power ultrasonic cleaning produces fine cavitation bubbles visible to the naked eye for thorough deep cleaning

9 Models Available
Nine models from BW-320 to BW-1800 covering anilox roll lengths up to 1860 mm; special sizes accepted

Low Operating Cost
Cleaning liquid can be prepared with tap water plus a small amount of special solvent, minimizing daily consumable cost

Why Choose BW Series Anilox Ultrasonic Cleaning?

Unlike manual or chemical-only cleaning methods, the BW Series Ultrasonic Cleaning Machine uses high-frequency cavitation to reach deep into anilox roll cell structures — restoring cell volume and improving ink transfer consistency. The switchable single/multiple frequency design tackles both routine maintenance and stubborn, dried ink buildup. Combined with heating and constant temperature control, a durable waterproof stainless steel shell, and customizable sizes up to 1860 mm roll length, the BW series delivers a complete, economical solution for maintaining anilox roll quality and extending service life in any flexo printing operation.

Get a Free Quote Today

Tell us your anilox roll length and quantity requirements, we'll recommend the best model for you.

✉ Send Inquiry Now ☎ WhatsApp: +86 15051421690

PRODUCTION & DELIVERY

From our 30,000m² production base to your factory — every machine is carefully assembled, tested and packed before shipment.

FAQ

Q1: What is an anilox roll and why does it need ultrasonic cleaning?

An anilox roll is a key component in flexographic printing that transfers a controlled amount of ink to the printing plate. Over time, ink dries and clogs the microscopic cells on the roll surface, causing inconsistent ink transfer and poor print quality. Ultrasonic cleaning uses high-frequency cavitation to safely remove dried ink and debris from deep within the cells without damaging the ceramic or chrome coating.

Q2: What is the difference between single frequency and multiple frequency cleaning?

Single frequency (40 KHz) provides stable, reliable ultrasonic waves with strong penetration for routine cleaning of lightly soiled rolls. Multiple frequencies combine low frequency to break down stubborn, dried ink deposits with high-frequency precision cleaning for delicate cell structures — ideal for heavily clogged rolls or periodic deep maintenance.

Q3: What model should I choose for my anilox roll length?

Nine standard models are available covering anilox roll lengths from 350 mm (BW-320) up to 1860 mm (BW-1800). Choose a model whose maximum roll length matches or exceeds your longest anilox roll. All models clean 2 rolls per cycle. Custom sizes are also accepted upon request.

Q4: What cleaning liquid should I use?

The cleaning liquid can be prepared using tap water and a small amount of special solvent. The exact solvent type and concentration depend on the ink system you use (water-based, alcohol-based, or UV). Contact us for specific cleaning agent recommendations based on your application.

Q5: Does the machine require heating during cleaning?

Yes. The BW series is equipped with a heating and constant temperature system with a temperature range of 20°C to 100°C. Heating the cleaning solution improves ultrasonic cavitation efficiency and helps dissolve dried ink faster, significantly reducing cleaning time and improving results.

Q6: What is the lead time and after-sales support?

Standard lead time is approximately 40 days after deposit confirmation. We provide comprehensive after-sales support including installation guidance, operation training, troubleshooting assistance, and spare parts supply. Our technical team is available both on-site and online to ensure your equipment operates at peak performance.

Q7: How many anilox rolls can be cleaned per cycle?

All BW series models are designed to clean 2 anilox rolls simultaneously per cycle, improving efficiency and reducing downtime. The suspension-type design allows both rolls to be evenly exposed to ultrasonic cavitation for consistent cleaning results.

Q8: How often should I clean my anilox rolls?

It depends on your ink type and production volume. As a general rule, water-based inks require more frequent cleaning due to faster drying, while UV and solvent-based inks may allow longer intervals between cleanings. If you notice declining print quality, color inconsistency, or ink transfer issues, it's time for a cleaning.
